Commander 8×8

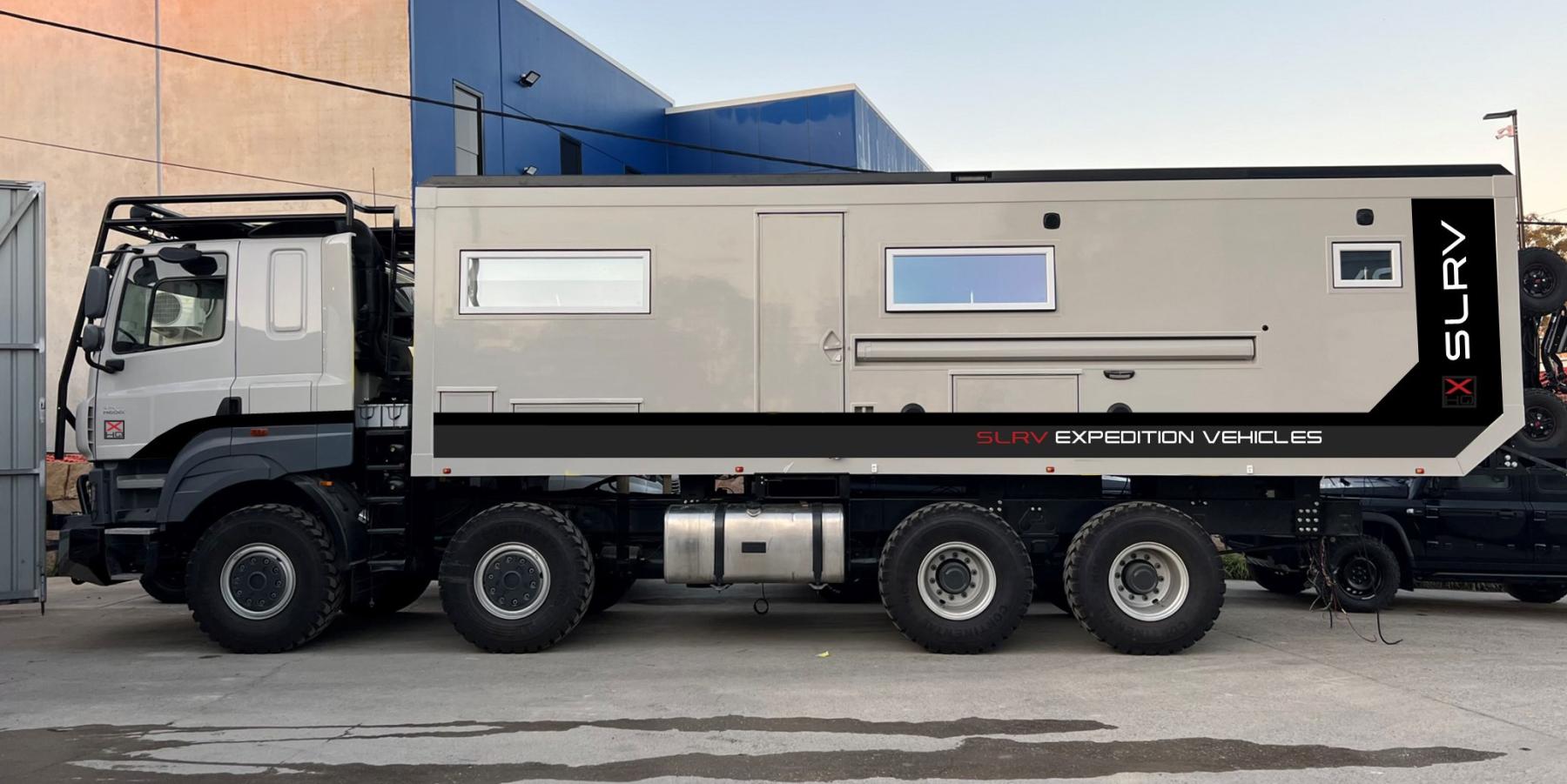

SLRV Commander 8x8 Expedition vehicle

This vehicle is available in single or double story configurations - and can be custom designed to suit your specific requirements.

The SLRV Commander 8×8 provides the ultimate spatial solution for families, commercial applications or those looking for the ultimate luxury vehicle with all the comforts of a house or unit. The MAN TGS vehicle base has 4 locked diffs and is almost unstoppable. Dream big!

Configurations

Configurations

The SLRV Commander 8×8 is available on the MAN TGS or Tatra Phoenix 8×8 platform, with a very spacious 8.5m body. All models feature an enclosed 1m rear garage, to store larger items including spare tyre, table and chairs, mountain bikes (qty varies) – and even a motorcycle. Various floorplans are available to suit your specific requirements.

SLRV Commander 8x8 60_8500_1000_A

SLRV Commander 8x8 60_8500_1000_A
  • Front club lounge with optional electric guest bed
  • Galley kitchen
  • Full ensuite
  • N/S Queen bed with robes
  • 1m rear garage
Download SLRV Commander 8x8 60_8500_1000_A

SLRV Commander 8x8 60_8500_1000_B

SLRV Commander 8x8 60_8500_1000_B
  • Front club lounge with optional electric guest bed
  • Galley kitchen
  • E/W Queen bed with robes
  • Full rear ensuite
  • 1m rear garage
Download SLRV Commander 8x8 60_8500_1000_B

SLRV Commander 8x8 60_8500_1000_C

SLRV Commander 8x8 60_8500_1000_C
  • Front club lounge with electric N/S King bed
  • Galley kitchen
  • Full ensuite with robes
  • 2 or 3 bunk beds with robes
  • 1m rear garage
Download SLRV Commander 8x8 60_8500_1000_C

Interior Comfort

The SLRV Commander 8×8 has an extremely spacious and well appointed interior – perfect for those requiring the additional comforts of home. High end cabinetry, solid surface benchtops, Miele appliances and Italian leather lounge combinations furnish the multiple living areas of this vehicle – creating an incredible living space.

Features & Appliances

SLRV vehicles can be fitted with an almost endless range of features and appliances, including:

  • Electric bed
  • induction cooktop
  • convection/microwave oven
  • washer/dryer
  • dishwasher
  • fridge/freezer
  • additional drawer freezer
  • gas/electric BBQ
  • water & room heater
  • entertainment systems
  • satellite tv
  • mobile internet
  • & much more!
  • * note possible features vary with model



These features are seamlessly incorporated into the interior space creating an extremely spacious and comfortable atmosphere.

Electric Lift up Bed Configuration

The electric lift up bed configuration optimises available internal space by incorporating both the bed and large club lounge into one area. Conveniently located out of the way – towards the roof, the bed can be lowered to its sleeping position at the press of a button. The extra large lounge and dining area can accommodate for the additional ‘Crew’ or just create a relaxing lounging experience for two.

Fixed Bed Configuration

Fixed Bed Configuration

If you prefer a separate fixed bed configuration, the Commander can be fitted with an island north/south or island east/west Queen bed.

Bunk Beds

Bunk Beds

The family configuration features two/three bunks beds for the kids or other guests. Bunks are fitted in conjunction with the electric lift up bed over the lounge, which gives ample dining room for everyone.

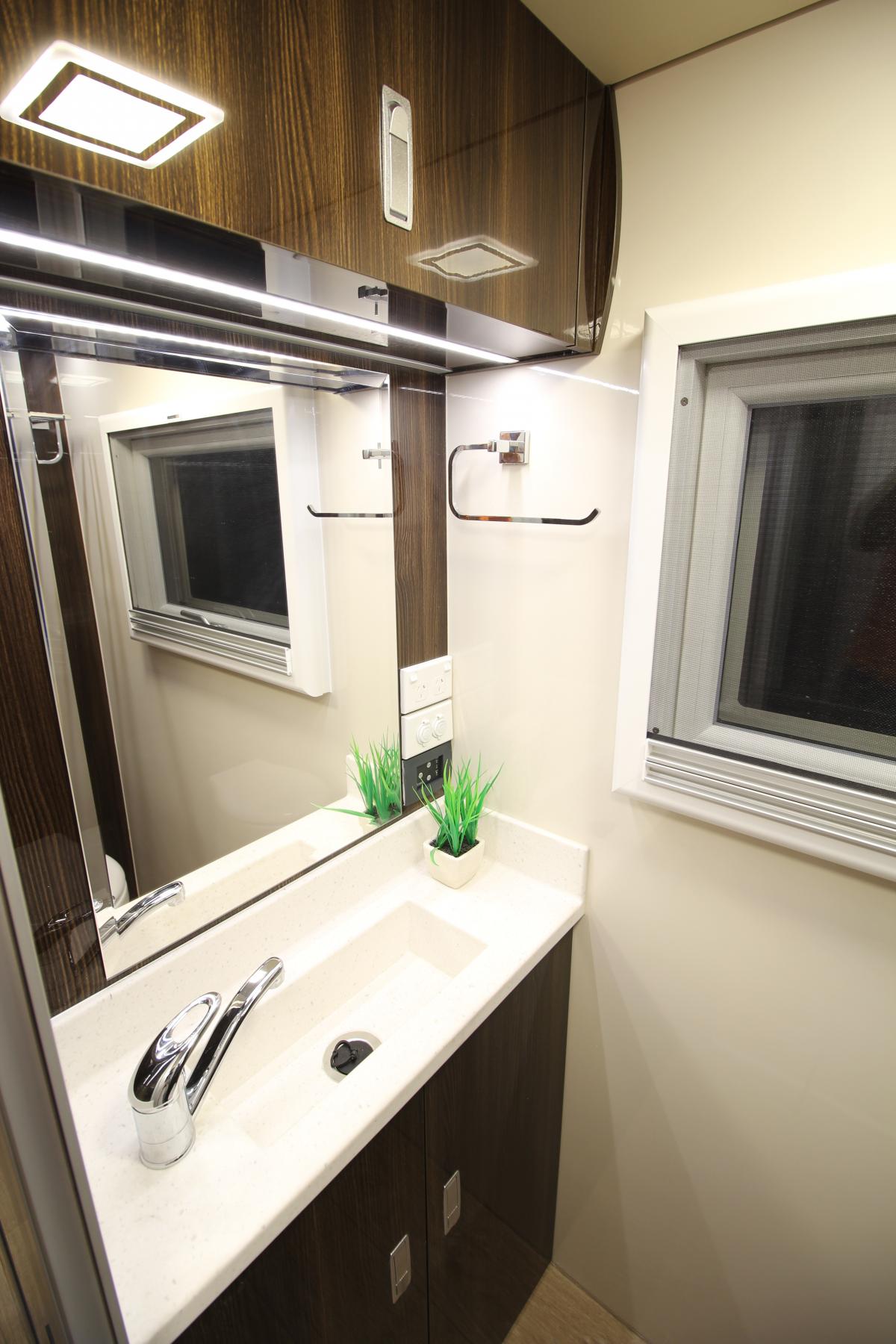

Full Ensuite

Full Ensuite

The Commander features a luxuriously appointed ‘full ensuite’ with separate shower, toilet and vanity unit. The wash basin is incorporated into the solid surface benchtop for a seamless finish.

Custom Interior Finishes

No matter what your interior style is, SLRV have you covered. With a range of interior finishes including:

  • Flooring
  • Cabinetry
  • Solid Surface Benchtop
  • Upholstery
  • Wall & Ceiling

You’re sure to find a style that makes you feel right at home.

SLRV Commander 8x8 3D Interior Tour - 2 Storey Family layout

Power & Self Sufficiency

Power & Self Sufficiency

An Expedition Vehicle by definition, should not only reach remote locations, but it must also allow its occupants to stay for extended periods. To do this, the vehicle must incorporate a power system that verges on self-sufficiency. This power cycle can be split into 3 main stages:

  • Power Storage
  • Power Supply
  • Recharging

Let’s have a look at how the SLRV Commander combines cutting-edge design and the latest technology to do just that……

Power Storage – The worlds leading lithium battery

Power Storage – The worlds leading lithium battery

SLRV are proud partners with Mastervolt – the world leaders in Lithium battery systems. The MLI Ultra series is designed to enjoy all the best properties of Lithium Ion technology in the harshest conditions. These high-performance batteries are ideal for running heavy loads for long periods and short charge times. The battery communicates with the charging system via the MasterBus network, ensuring safety and performance is maximised at all times. With up to 70% saving in space and weight, these are the ideal choice for any expedition vehicle.

The SLRV Commander 8×8 is equipped with 1380Ah of lithium battery power as standard – and can be optioned with additional 460Ah batteries as required. These larger systems generally provide the power capacity required to run 110/240v household appliances and air conditioning, off grid, for longer periods of time. This in turn, is one of the key elements that allows SLRV vehicles to be equipped with the many ‘comforts of home’.

Power Supply – 12V / 24V & Inverter power

Power Supply – 12V / 24V & Inverter power

Much of SLRV’s power is supplied as 12V or 24V – and operates a majority of systems including LED lighting, refrigerators and freezers, pumps & plumbing, various appliances and monitoring systems.

Other appliances that we take for granted in our homes, such as induction cooktop, oven/microwave, washer/dryer, electric BBQ and air conditioner to name a few, require 110/240V power to operate. To convert 12V battery power into usable 110/240V energy for these appliances, an inverter is required. SLRV vehicles are all equipped as standard, with a 3500W Mastervolt unit. This is suitable to run one to two appliances at a time. If you require additional power, SLRV’s larger systems include 2 inverters, giving a total of 7000W!

For your convenience, all SLRV vehicles feature multiple internal and external charging sockets, including:

  • 12V cigarette type
  • USB points
  • Anderson plug
  • Wireless Under bench phone charging

Recharging

Recharging

The ability to recharge your battery system from multiple sources is vital. The nature of an expedition vehicle often requires this to be done during remote travel, where mains power isn’t readily available. Lets take a look at the ways an SLRV helps keep you charged….

Recharging - Mains Power

Recharging - Mains Power

When you are connected to the power grid, charging is done via the Mastervolt 100A battery charger. This system can be configured to accept both 110V and 240V power sources – so you can charge your battery system anywhere in the world.

Recharging - Secondary Alternator

Recharging - Secondary Alternator

By far the best source of battery charging is SLRV’s Secondary Alternator system. This unit can provide up to 2.5kW charge while driving and even charge while at idle. This makes it an ideal source of charge during remote travel. The second alternator is a key part of the Commander 8×8’s electrical system – which incorporates a large battery capacity, loads of inverter power and multiple highly efficient recharging systems. This means you can use more appliances….more often!

Recharging - Solar Power

Recharging - Solar Power

Multiple charging sources are crucial for any expedition vehicles power system. Solar cells play an essential role in keeping your system charged when no other source is available. A good array of panels will, in fact, keep the necessary appliances in the Commander running self sufficiently – given a decent ray of sunshine.
SLRV expedition vehicles utilise a series of highly energy efficient 200W panels. The Commander features a 1.6kW system as standard.

Recharging - Generators

Recharging - Generators

Under normal usage, with a high-end SLRV electrical system, a generator is not regularly required. It does, however, provide a valuable backup source for charging during an extended period of overcast or rainy weather – or even when you’re camped up for an extended stay. Generators can range anywhere from a small Honda 2.0i to a large built-in Diesel unit.

Those who follow the crowd, usually get lost in it

Water Systems

Water is undoubtedly our most precious commodity when remote touring. An Expedition Vehicle must not only hold ample water for its passengers; it has to aid in the conservation of water. This, in turn, allows you to remain out in the wilderness for longer. The SLRV team have designed a system that will do just that. Let’s have a look how it works.

Multiple Cells

Multiple Cells

To store and conserve water, the SLRV system incorporates multiple tanks – arranged in series of separate ‘cells’. By doing this, various quality water can be stored in separate tanks and accessed for specific uses – ultimately enabling you to conserve your water. This intelligent system allows you to select which tank you wish to fill by the press of a switch. Similarly, inside the vehicle, you can choose which tank you want to draw from. Depending on configuration, the Commander 8×8 holds anywhere from 600 to 1000 litres of water – suitable for long-term remote travel.

Dedicated Drinking Water

Dedicated Drinking Water

Ensuring you always have a safe source of drinking water is vital. SLRV have a dedicated and independent drinking water system –  with its own filler, tank, pump, filtration system and mixer outlet. This ensures your quality drinking water remains just that – and is ultimately conserved for extended isolated travel.

City Water Supply

City Water Supply

All SLRV water systems incorporate a city water entry – bypassing your tanks and allowing you to connect to the mains water supply whenever available. Pressure fillers used in the SLRV system also provide added security to your water supply.

Diesel Hot Water & Heater

Diesel Hot Water & Heater

All SLRV vehicles utilise diesel powered hot water and heater systems. These are extremely efficient and are plumbed into the trucks diesel tank. The heater works brilliantly – and the water system can supply constant hot water for your needs.

Creek Pump

Creek Pump

Staying out in the wilderness for longer is the name of the game. With water tanks set up in separate cells, it is possible to isolate and store water from various sources such as creeks, dams or rivers. This can be pumped into a dedicated tank using the ‘Thirsty Boy’ – and used for tasks including showering or doing a washing cycle. The Thirsty Boy can also be used on the ‘city water entry’ circuit – bypassing tanks altogether. The Thirsty Boy comes in its own ‘tough case’ with an internal pump and power supply for complete mobility. Just hook up your water hoses, and away you go.

Construction

The SLRV Commander 8×8 is constructed using the latest in composite technology and sits on a specially engineered 4 point torsion free chassis. The result is something to behold.

Take a look!

CAD Design & CNC

CAD Design & CNC

SLRV use the latest SOLIDWORKS 3D CAD software to continually develop and evaluate vehicle design. Customers receive a full 3d model and working drawings of their vehicle design, to ensure the build meets their exact requirements. By utilising this Solidworks software, a wide variety of steel and aluminium components are CNC cut and folded for precision accuracy and build quality.

4 Point Torsion Free Chassis

4 Point Torsion Free Chassis

The torsional ‘twist’ of the MAN truck chassis in extreme conditions, requires the body to be mounted using a proper ‘4 point torsion free subframe’. Conventional ‘spring mounted’ systems do not remove all the force from the body – and can potentially cause structural issues with composite panel constructions. A true torsion free system allows the body and truck chassis to twist freely and independently – removing the transfer of these forces into the motorhome body and retaining the structural integrity of the vehicle. This design also increases off-road performance by increasing the wheels ability to remain in contact with the ground over rough terrain.

Infused Composite Fibreglass Panels

Infused Composite Fibreglass Panels

60mm composite fibreglass panels are used in the construction of the Commander’s body – for ultimate strength and cold bridge free insulation. Unlike inferior hot glued panels, SLRV panels are fully infused, which means they are manufactured under vacuum – injecting the perfect amount of resin into the fibreglass. The premium closed cell, self-extinguishing core material has a series of holes, allowing the resin to flow thru and connect the inside and outside fibreglass layers. This prevents de-lamination and adds to the overall strength of the panel. Both sides of SLRV panels are finished in gelcoat, for the maximum durability, serviceability and a brilliant finish.

Double Glazed recessed Glass Windows

Double Glazed recessed Glass Windows

The SLRV Commander features custom double glazed, gas-filled recessed windows from Germany. The recessed design creates a flush external fit, while double glazing provides excellent insulation against the elements. Insect and block out screens are fitted internally and all windows are available with external armour plating.

Superior Electrical Protection

Superior Electrical Protection

All wiring throughout the SLRV Commander is run in conduit for protection against wear and shorting. In fact, every electrical device has its own wiring, in conduit, the entire way back to the main circuit breaker.

Joinery

Joinery

SLRV joinery is constructed using the highest quality materials, fixtures and fittings – and is specifically constructed for rugged off-road travel. Cabinet carcass’ are constructed from an ultralight, waterproof and fire retardant plastic material, giving high strength and durability. Cupboard and drawer fronts are finished in a high-quality ABS plastic and are complemented by soft close drawer runners and Blum overhead stays. Signature SLRV heavy duty compression latches are used throughout.

SLRV hatch's

SLRV hatch's

SLRV manufacture its own range of aluminium hatch’s. Unlike mass-produced hatch’s, they are dust, and waterproof do not degrade in the sun. 60mm composite door panels open with gas strut assist and LED lights automatically turn on inside the hatch area.

SLRV Driver Training

Your choice of Truck platform

The SLRV Commander 8×8 body can be mounted to the MAN TGS or Tatra Phoenix 8×8 truck platform.

Diff Locks

Diff Locks

Either vehicle features 4 locking diffs. Diff locks forces both wheels on the diff to turn in unison, regardless of the traction (or lack thereof) available to either wheel individually.

Air Seats

Air Seats

Seating is all air controlled and multi-adjustable. The air suspension seats provide maximum comfort over rough and relentless terrain.

Additional Fuel Tank

Additional Fuel Tank

SLRV spec vehicles are optioned with an additional diesel fuel tanks, giving the vehicle up to 1000L for extended range.

Expedition Roof Rack and Windscreen Bars

Expedition Roof Rack and Windscreen Bars

All SLRV’s are fitted with a powdercoated aluminium Expedition Roof Rack as standard. Frontal bars protect the windscreen and guide tree branches up and over the vehicle. The rooftop provides a massive area for storage and features tie down bars, spotlight mounts and an access ladder. The rack can be fitted with an optional aluminium box for additional storage. A handy rooftop davit with remote controlled electric winch makes it easy for anyone to load gear up top.

Winch Bar, Bash Guard & Front Winch

Winch Bar, Bash Guard & Front Winch

The SLRV custom winchbar is designed and built in house – and houses a 25,000lb electric, or 30,000lb hydraulic crane winch to help get you out of those tricky situations! Features of the bar also include:

  • Powdercoated alloy construction
  • Additional bash guard for underbody protection
  • High
  • LED headlights
  • Led fog lights
  • Light protection grill
  • Winch fairlead
  • Recovery points
  • Optional LED light bar

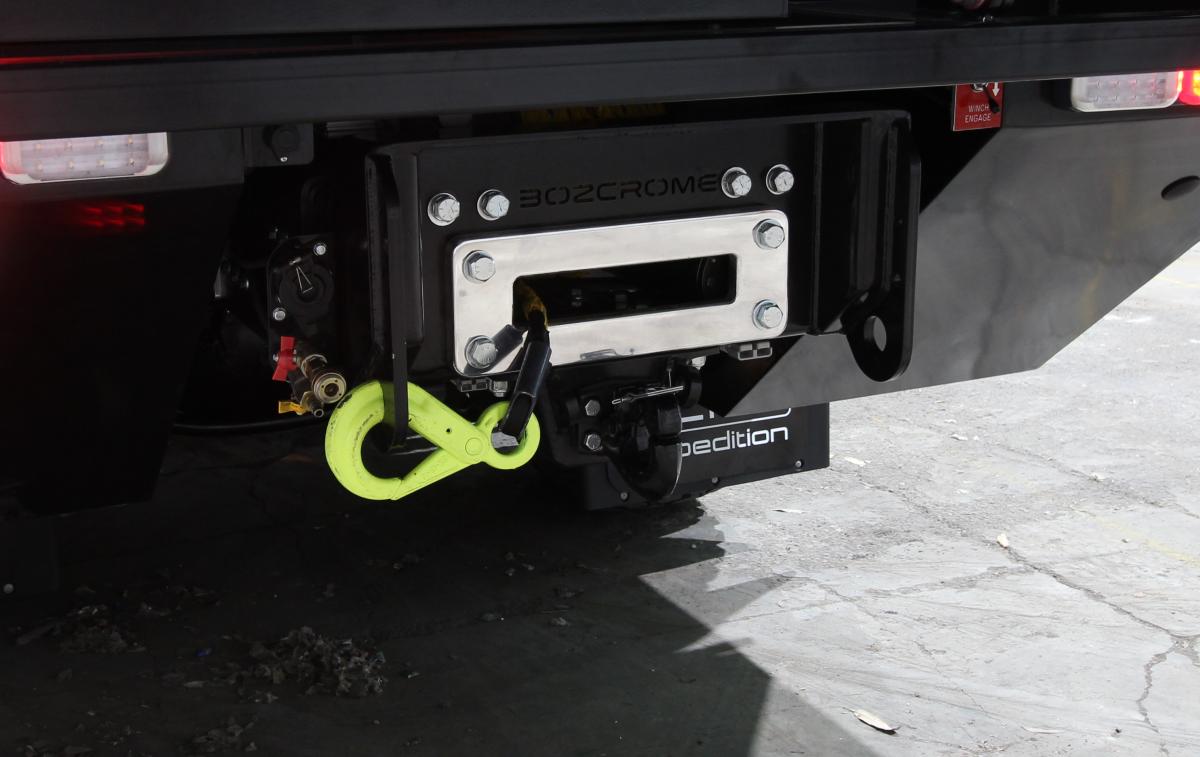

Rear Winch & Towbar

Rear Winch & Towbar

The SLRV rear winch receiver is designed to house the same electric or hydraulic winch used up front. Very handy for a rear recovery – when there just isn’t any chance of going forward. The receivers smart design allows a number of towbar attachments, including a standard 50mm towbar attachment and pintle hook.

Compressed Air System

Compressed Air System

Both vehicles already features an onboard air system. The air system is utilised by the tyre inflation and deflation setup, which can be simultaneously controlled for all tyres by an optional semi-automatic control system.

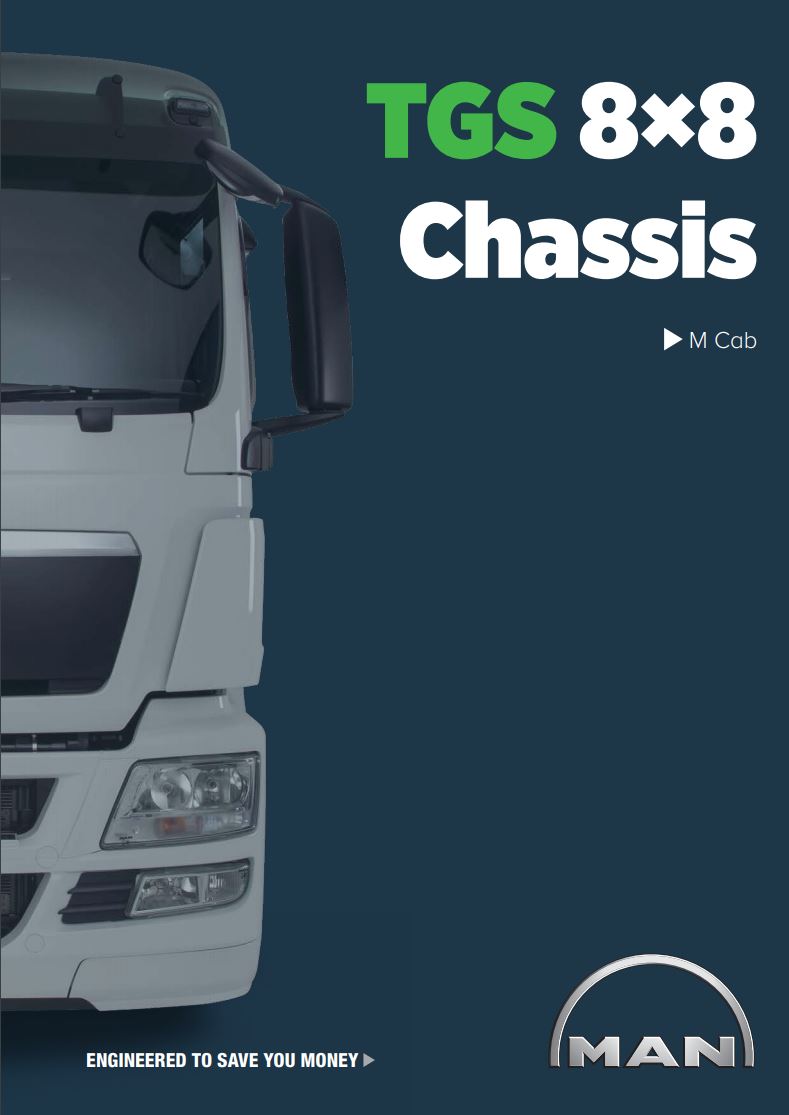

MAN TGS 8x8 Specifications

TATRA Phoenix 8x8 Specifications
