Unimog U430/U530 4×4

SLRV Unimog U430/U530 Expedition Vehicle

SLRV's Mercedes Unimog U430/U530 based unit is a compact and capable 4x4 Expedition Vehicle.

It offers a compact solution that delivers excellent off road capabilities. Its portal axles, diff locks and tyre inflation system give it great off road capability, while its optional VarioPilot changeable steering system allows the driver to command the vehicle from a Left or Right hand drive steering position – excellent for overseas adventures. The cleverly designed living quarters provide for a very comfortable touring experience.



Configuration

The Mercedes Unimog U430/U530 is available in one simple configuration. Its fixed wheelbase and 4 metre body provide a compact solution to off road exploration.

SLRV U430/U530 4x4 Floorplan A

SLRV U430/U530 4x4 Floorplan A
  • Front Electric lift up bed over club lounge
  • Galley Kitchen
  • Full Ensuite
Download SLRV 60_4000_0_A

Interior Comfort

The compact living space of SLRV’s Unimog U430/U530 based vehicle has been designed to create a spacious, open feel, with the modern features and appliances you would expect of a small unit. Its luxury feel is created through the use of high-end materials, including cushioned headlining, leather lounge options, modern cabinetry and solid surface benchtops.

Features & Appliances

SLRV vehicles can be fitted with an almost endless range of features and appliances, including:

  • Electric bed
  • induction cooktop
  • convection/microwave oven
  • washer/dryer
  • dishwasher
  • fridge/freezer
  • additional drawer freezer
  • gas/electric BBQ
  • water & room heater
  • entertainment systems
  • satellite tv
  • mobile internet
  • & much more!
  • * note possible features vary with model

These features are seamlessly incorporated into the interior space creating an extremely spacious and comfortable atmosphere.

Electric Lift up Bed Configuration

The electric lift up bed configuration optimises available internal space by incorporating both the bed and large club lounge into one area. Conveniently located out of the way-  towards the roof, the bed can be lowered to its sleeping position at the press of a button. The extra large lounge and dining area can accommodate for the additional ‘Crew’ or just create a relaxing lounging experience for two.

Full Ensuite

SLRV’s Unimog body incorporates a luxurious ‘full ensuite’ with separate shower, toilet and vanity unit. The wash basin is incorporated into the solid surface benchtop for a seamless finish.

Custom Interior Finishes

Custom Interior Finishes

No matter what your interior style is, SLRV have you covered. With a range of interior finishes including:

  • Flooring
  • Cabinetry
  • Solid Surface Benchtop
  • Upholstery
  • Wall & Ceiling

You’re sure to find a style that makes you feel right at home.

Power & Self Sufficiency

Power & Self Sufficiency

An Expedition Vehicle by definition, should not only reach remote locations, but it must also allow its occupants to stay for extended periods. To do this, the vehicle must incorporate a power system that verges on self-sufficiency. This power cycle can be split into 3 main stages:

  • Power Storage
  • Power Supply
  • Recharging

Let’s have a look at how the SLRV Adventurer combines cutting-edge design and the latest technology to do just that……

The Worlds Leading Battery Systems

The Worlds Leading Battery Systems

SLRV are proud partners with Mastervolt – the world leaders in Lithium battery systems. The MLI Ultra series is designed to enjoy all the best properties of Lithium Ion technology in the harshest conditions. These high-performance batteries are ideal for running heavy loads for long periods and short charge times. The battery communicates with the charging system via the MasterBus network, ensuring safety and performance is maximised at all times. With up to 70% saving in space and weight, these are the ideal choice for any expedition vehicle.

All SLRV vehicles are equipped with a 400Ah lithium battery as standard – and can be optioned with 800Ah or 1200Ah systems (depending on the vehicle). The larger systems generally provide the power capacity required to run 110/240v household appliances and air conditioning, off grid, for longer periods of time. This in turn, is one of the key elements that allows SLRV vehicles to be equipped with the many ‘comforts of home’.

Power Supply – 12V / 24V & Inverter power

Power Supply – 12V / 24V & Inverter power

Much of SLRV’s power is supplied as 12V or 24V – and operates a majority of systems including LED lighting, refrigerators and freezers, pumps & plumbing, various appliances and monitoring systems.

Other appliances that we take for granted in our homes, such as induction cooktop, oven/microwave, washer/dryer, electric BBQ and air conditioner to name a few, require 110/240V power to operate. To convert 12V battery power into usable 110/240V energy for these appliances, an inverter is required. SLRV vehicles are all equipped as standard, with a 3500W Mastervolt unit. This is suitable to run one to two appliances at a time. If you require additional power, SLRV’s larger systems include 2 inverters, giving a total of 7000W!

For your convenience, all SLRV vehicles feature multiple internal and external charging sockets, including:

  • 12V cigarette type
  • USB points
  • Anderson plug
  • Wireless Under bench phone charging

Recharging

Recharging

The ability to recharge your battery system from multiple sources is vital. The nature of an expedition vehicle often requires this to be done during remote travel, where mains power isn’t readily available. Lets take a look at the ways an SLRV helps keep you charged….

Recharging – Mains Power

Recharging – Mains Power

When you are connected to the power grid, charging is done via the Mastervolt 100A battery charger. This system can be configured to accept both 110V and 240V power sources – so you can charge your battery system anywhere in the world.

Recharging – Secondary Alternator

Recharging – Secondary Alternator

By far the best source of battery charging is SLRV’s Secondary Alternator system. This unit can provide up to 2.5kW charge while driving and also charges while at idle. This makes it an ideal source of charge during remote travel. The second alternator is a key part of SLRV’s stage 2 and 3 electrical packages, providing large battery capacity, loads of inverter power and multiple highly efficient recharging systems. This means you can use more appliances….more often!

Solar Power

Solar Power

Multiple charging sources are crucial for any expedition vehicles power system. Solar cells play an essential role in keeping your system charged when no other source is available.

SLRV expedition vehicles utilise a series of highly energy efficient 200W panels. The Unimog is fitted with maximum solar as standard!

Recharging – DC DC Chargers

Recharging – DC DC Chargers

Standard 400Ah lithium systems that don’t feature a secondary alternator, use a pair of Mastervolt DC-DC chargers to receive a 100A charge from the truck. This is the same charge you receive by plugging into mains power.



Recharging - Generators

Under normal usage, with a high-end SLRV electrical system, a generator is not regularly required. It does, however, provide a valuable backup source for charging during an extended period of overcast or rainy weather – or even when you’re camped up for an extended stay.

The gladdest moment in human life is a departure into unknown lands

Water Systems

Water is undoubtedly our most precious commodity when touring remotely. An Expedition Vehicle must not only hold ample water for its passengers, it has to aid in the conservation of water. This, in turn, allows you to remain out in the wilderness for longer. The SLRV team have designed a system that will do just that. Let’s have a look how it works!

Multiple Cells

To store and conserve water, the SLRV system incorporates multiple tanks – arranged in series of separate ‘cells’. By doing this, various quality water can be stored in separate tanks and accessed for specific uses – ultimately enabling you to conserve your water. This intelligent system allows you to select which tank you wish to fill by the press of a switch. Similarly, inside the vehicle, you can select which tank you want to draw from. Depending on configuration, the 4m SLRV body holds approx. 300 litres of water – suitable for long-term remote travel

Dedicated Drinking Water

Dedicated Drinking Water

Ensuring you always have a safe source of drinking water is vital. SLRV have a dedicated and totally independent drinking water system –  with its own filler, tank, pump, filtration system and mixer outlet. This ensures your quality drinking water remains just that – and is ultimately conserved for extended isolated travel.

Water Filtration

Water Filtration

A carbon water filter system is fitted to your SLRV drinking water system as standard, removing impurities for clean tasting water.

City Water Supply

City Water Supply

All SLRV water systems incorporate a city water entry – bypassing your tanks and allowing you to connect to the mains water supply whenever available. Pressure fillers used in the SLRV system also provide added security to your water supply.

Diesel Hot Water & Heater

Diesel Hot Water & Heater

All SLRV vehicles utilise diesel powered hot water and heater systems. These are extremely efficient and are plumbed into the trucks diesel tank. The heater works brilliantly – and the water system can supply constant hot water for your needs.

Creek Pump

Creek Pump

Staying out in the wilderness for longer is the name of the game. With water tanks set up in separate cells, it is possible to isolate and store water from various sources such as creeks, dams or rivers. This can be pumped into a dedicated tank using the ‘Thirsty Boy’ – and used for tasks including showering or doing a washing cycle. The Thirsty Boy can also be used on the ‘city water entry’ circuit – bypassing tanks altogether. The Thirsty Boy comes in its own ‘tough case’ with an internal pump and power supply for complete mobility. Just hook up your water hoses and away you go.

Construction

Construction

SLRV’s Unimog U430/U530 based rig is constructed using the latest in composite technology and sits on a specially engineered 3 point torsion free chassis…….

CAD Design & CNC

CAD Design & CNC

SLRV use the latest SOLIDWORKS 3D CAD software to continually develop and evaluate vehicle design. Customers receive a full 3d model and working drawings of their vehicle design, to ensure the build meets their exact requirements. By utilising this Solidworks software, a wide variety of steel and aluminium components are CNC cut and folded for precision accuracy and build quality.

3 Point Torsion Free Chassis

3 Point Torsion Free Chassis

The torsional ‘twist’ of the Unimog truck chassis in extreme conditions, requires the body to be mounted using a 3 point torsion free chassis mounting system. This allows the body and truck chassis to twist independently – minimising transfer of these forces into the motorhome body. This also increases off-road performance by allowing the wheels to remain in contact with the ground.

Infused Composite Fibreglass Panels

Infused Composite Fibreglass Panels

60mm composite fibreglass panels are used in the construction of the Unimog’s body – for ultimate strength and insulation. Unlike inferior hot glued panels, SLRV panels are fully infused – which means they are manufactured under vacuum – injecting the perfect amount of resin into the fibreglass and achieving an optimum strength to weight ratio. Imported from Sweden, the premium closed cell, self-extinguishing core material has a series of holes that allow resin to flow thru and connect the inside and outside fibreglass layers. This prevents de-lamination and adds to the overall strength of the panel. Both sides of SLRV panels are finished in gelcoat, for the maximum durability, serviceability and a brilliant finish.

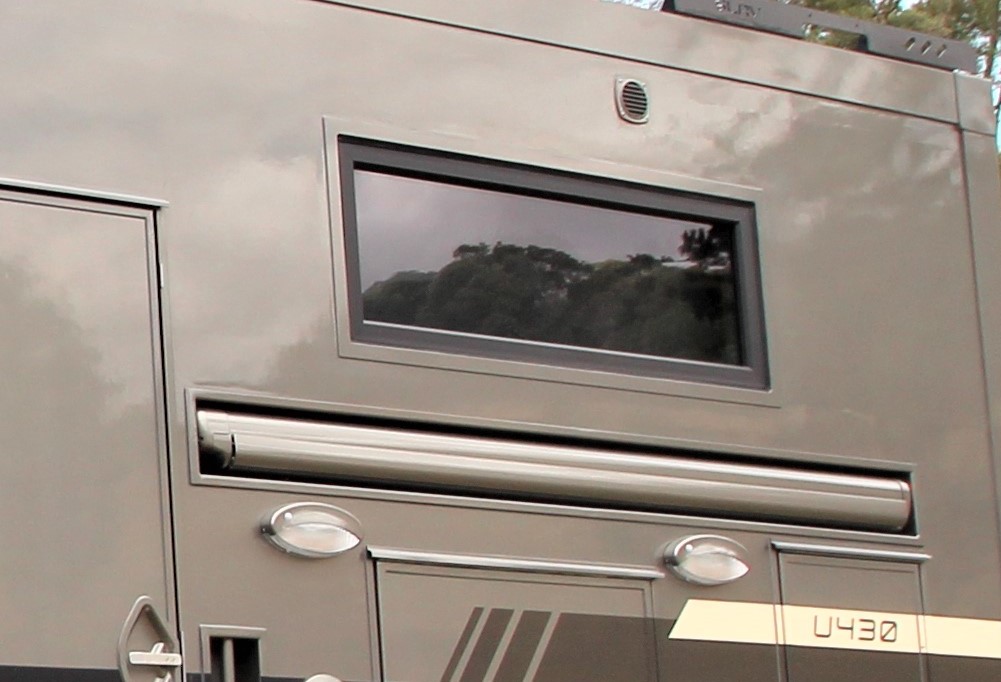

Double Glazed recessed Glass Windows

Double Glazed recessed Glass Windows

SLRV’s Unimog based body features custom double glazed, gas-filled recessed windows. The recessed design creates a flush external fit, while double glazing provides excellent insulation against the elements. Insect and block out screens are fitted internally and all windows are available with external armour plating.

Superior Electrical Protection

Superior Electrical Protection

All wiring throughout the vehicle is run in conduit for protection against wear and shorting. In fact, every electrical device has its own wiring, in conduit, the entire way back to the main circuit breaker.

Joinery

Joinery

SLRV joinery is constructed using the highest quality materials, fixtures and fittings – and is specially built for rugged off-road travel. Cabinet carcass’ is constructed from an ultralight, waterproof and fire retardant plastic material, giving high strength and durability. Cupboard and drawer fronts are finished in a high-quality ABS plastic and are complemented by soft close drawer runners and Blum overhead stays. SLRV heavy duty compression latches are used throughout.

SLRV hatch's

SLRV hatch's

SLRV manufacture their own range of aluminium and composite panel hatch’s. Unlike mass-produced hatch’s, they are both dust and water proof and do not degrade in the sun. Composite door panels open with gas strut assist and LED lights automatically turn on inside the hatch area.

The Mercedes Unimog U430/U530

The U430/U530 is a capable offroad truck, featuring portal axles, military spec wheels/tyres and front/rear diff locks. Interior cabin is comfortable for touring and the truck is also available with VarioPilot – an interchangeable left/right hand steering system.

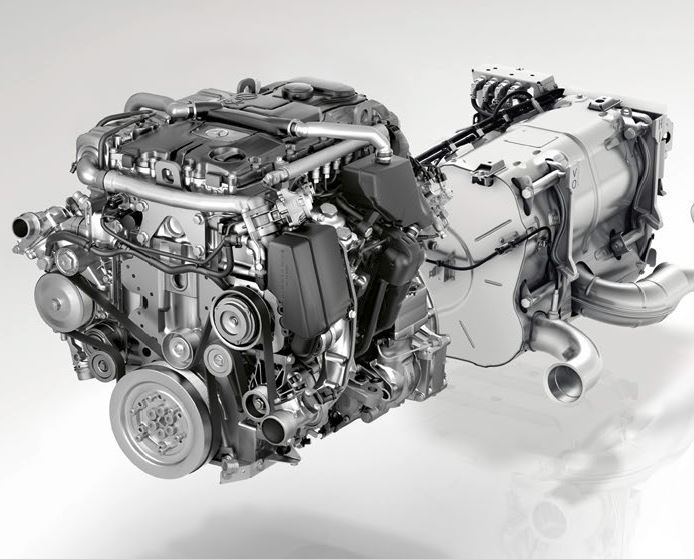

Engine

Engine
  • Mercedes-Benz 4-cylinder and 6-cylinder diesel engines, model series 93X
  • Newly developed engines from 115 kW /156 hp to 220 kW / 299 hp
  • Common rail direct injection with high injection pressures
    (up to 2400 bar)
  • Multiple injection
  • Single-stage and two-stage turbocharging
  • BlueTec 6 technology, Euro VI compliant, plus:
    -diesel particulate filter
    -camshaft adjustment

Transmission

Transmission
  • Fully synchronised 8-speed manual transmission with synchronised Electronic Quick Reverse (EQR)
  • Auto and Manual gearshift control
  • Optional working gears – Additional range group to provide reduction ratios
  • Optional crawler gear group

Diff Locks

Front, Rear and Centre lockers are standard on this unit, giving it improved off-road ability. Diff locks forces both wheels on the diff to turn in unison, regardless of the traction (or lack thereof) available to either wheel individually.

Portal Axles

Portal Axles

Portal Axles raise the height of the axle (and diff housing etc) above the wheel hub, increasing ground clearance. A set of gears then connect the axle shaft to the wheel hub. This gives the U430 additional axle ground clearance.

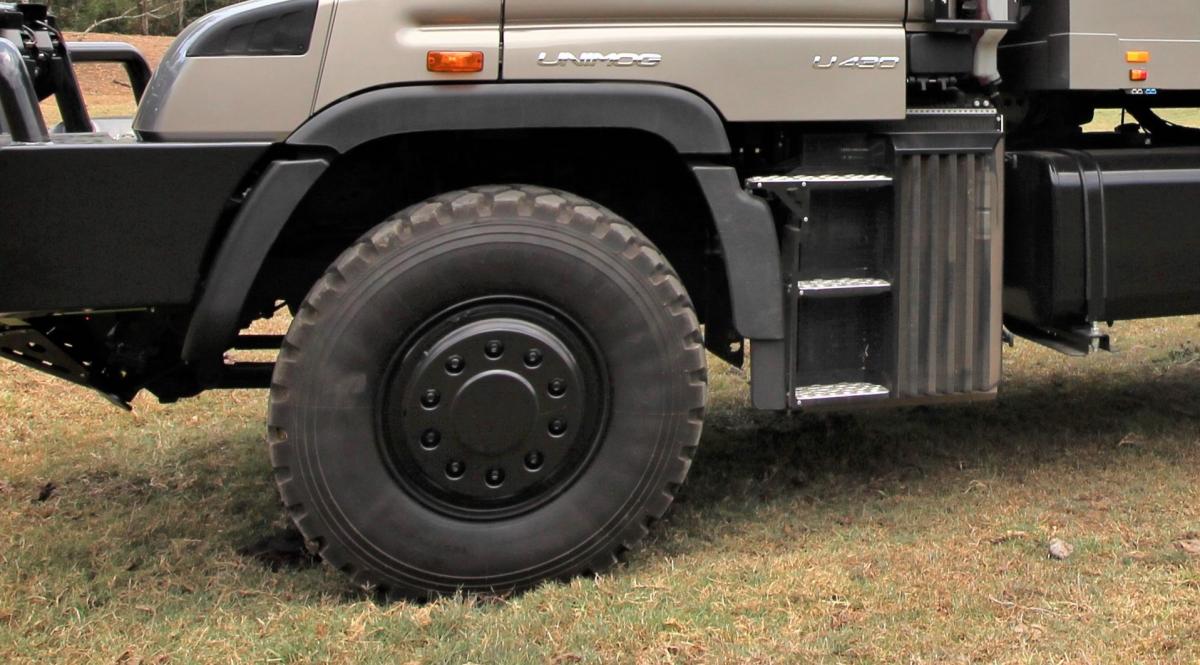

Military Spec Wheels & Tyres

Military Spec Wheels & Tyres

For ultimate off-road capability, the U430 is fitted with 20-inch wheels and Military spec Michelin XZL tyres. They provide maximum grip in mud and sand – and are very quiet for ‘on road’ driving.

Tirecontrol Plus - inflation and deflation systems

Tirecontrol Plus - inflation and deflation systems

The vehicles tire pressure for the respective application can be conveniently set in the display by pressing a button. The driver has the choice between the three pre-configured modes “road”, “sand” and “bad road” and “manual”. The tire pressure then adapts automatically. So the Unimog drives on loose ground like sand or mud with low tire pressure and more footprint. This provides better traction and less slippage. Or just economical and safe on the road thanks to high tire pressure and small footprint.

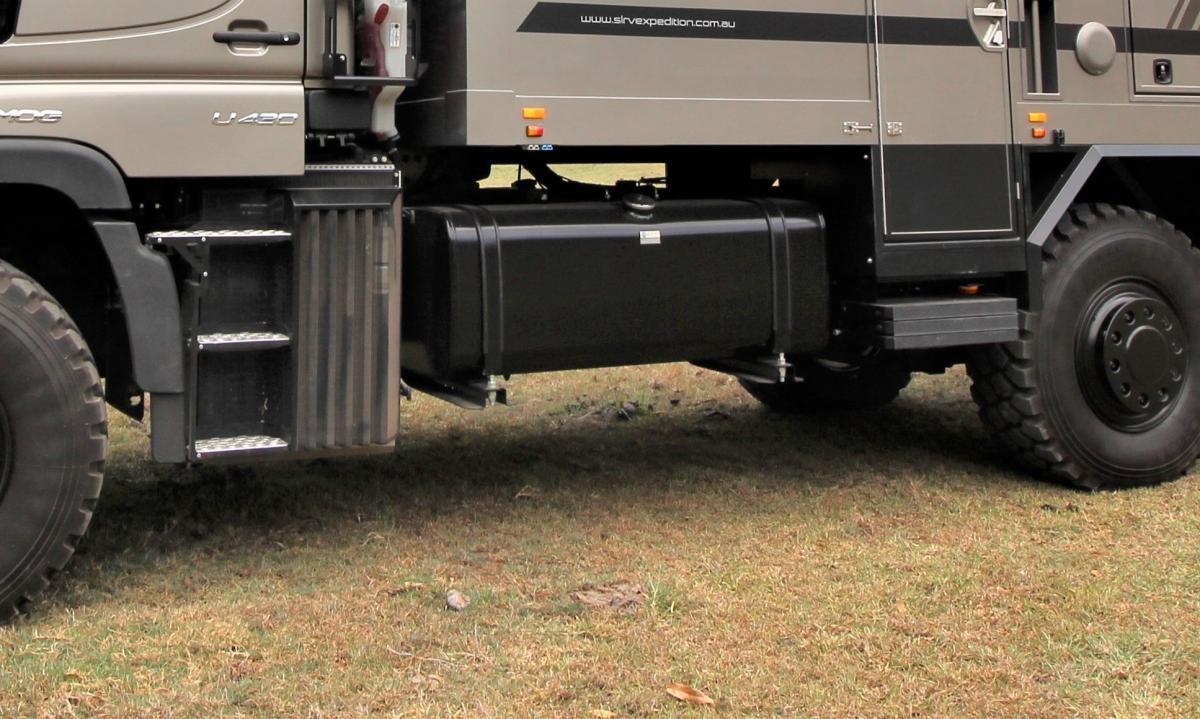

Additional Fuel Tank

Additional Fuel Tank

SLRV spec vehicles are optioned with a larger, or an additional diesel fuel tank, giving the vehicle extended driving range.

Expedition Roof Rack and Windscreen Bars

SLRV’s custom aluminium expedition roof rack provides additional storage area over the cab of the truck. It also features a side access ladder, spotlight mounts and sidebars to protect the windscreen from tree branches. An optional roof storage box is also available.

Winch Bar, Bash Guard & Front Winch

SLRV’s aluminium winch bar features LED headlights, fog lights, optional LED spotlight bar, recovery points, fair-lead and a bash guard for underbody protection. It houses a 25,000lb electric winch with synthetic cable.

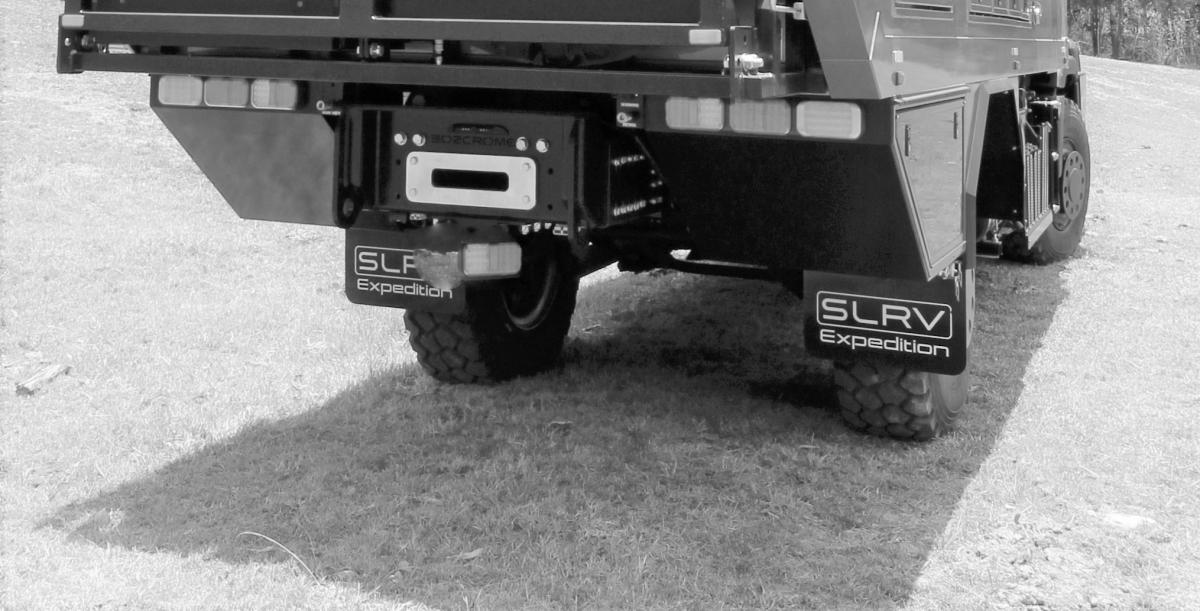

Rear Winch & Towbar

Rear Winch & Towbar

The rear winch receiver is designed to house the same 25,000lb electric winch used up front. Very handy for a rear recovery – when there just isn’t any chance of going forward. The receivers smart design allows a number of towbar attachments, including a standard 50mm towbar attachment and pintle hook.
