Adventurer 4×4

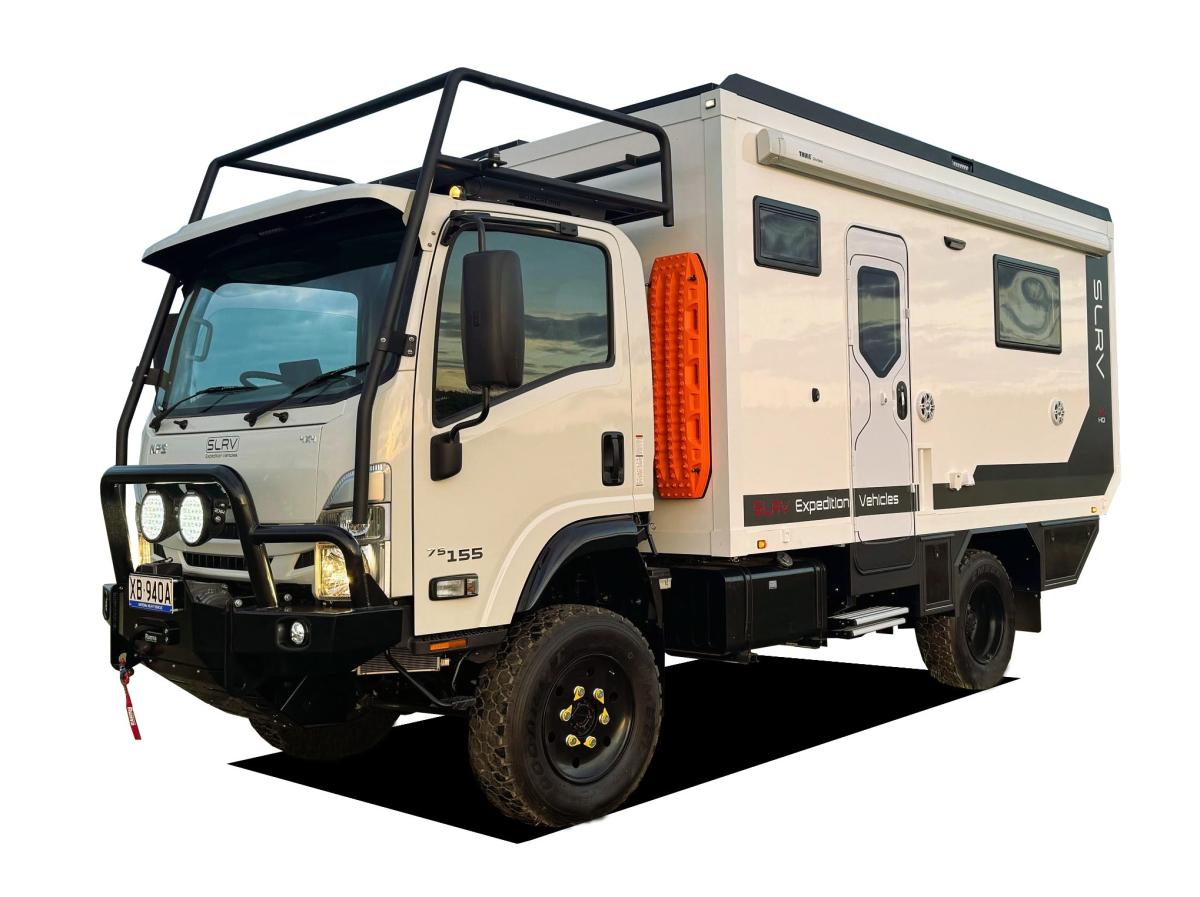

SLRV Adventurer 4x4 Expedition Vehicle

Access spectacular and usually inaccessible destinations all over the globe.

The combination of an extremely capable Four Wheel Drive Isuzu NPS300 vehicle and a purpose-designed and engineered body allow this vehicle to go almost anywhere.
The Adventurer 4×4 is a fully self-contained off-road motorhome. Its ‘fixed’ wall and roof design provide the required insulation, security and spacious interior fit-out that a ‘pop top’ construction lacks. In turn, it enables you to explore in complete comfort for months on end – in any environment.
SLRV are industry leaders in the design of power and water systems required for specialist expedition travel. Continual development and incorporation of world leading brands and technologies have resulted in a vehicle that verges on self-sufficiency.
These four wheel drive campers are also shipped easily around the globe, giving you endless destinations to explore.

Interior Comfort

Interior Comfort
The SLR Adventurer interior lends itself to the feel of a small modern unit space, providing the comfort required for more extended range touring. With seating and sleeping for up to 5 people and systems such as the ‘electric lift up bed over lounge’,  floor space is used to maximum efficiency to create a very open and user-friendly interior space.

Features & Appliances

Features & Appliances

SLRV vehicles can be fitted with an almost endless range of features and appliances, including diesel and gas cooktops, water and room heaters, washing machines, entertainment systems and more. The new under bench ‘side by side’ marine compressor fridge creates a considerable amount of additional bench space and adds to the open feel.

Electric Lift up Bed Configuration

Electric Lift up Bed Configuration

The electric lift up bed configuration optimises available internal space by incorporating both the bed and large club lounge into one area. Conveniently located out of the way towards the roof, the bed can be lowered to a sleeping position at the press of a button.

Fixed Bed Configuration

Fixed Bed Configuration

If you prefer a separate fixed bed, the Adventurer can be configured with an East-West bed. The head end of the bed can be fitted out with either full height robe, or low height storage locker with an additional window for maximum air cross flow.

Combined or Full Ensuite

Combined or Full Ensuite

East-West bed configurations have a spacious, full height combination shower and toilet module. With the additional space created by the electric lift up bed, the Adventurer can also include a ‘full ensuite’ – with separate shower, toilet and vanity.

Custom interior Finishes

Custom interior Finishes

No matter what your interior style is, SLRV have you covered. With a range of interior finishes including:

  • Flooring
  • Cabinetry
  • Splashback
  • Solid Surface Benchtop
  • Upholstery

You’re sure to find a style that makes you feel right at home.

SLRV Adventurer Interior 3D tour - Floorplan A

SLRV Adventurer Interior 3D tour - Floorplan D

SLRV Adventurer Interior 3D tour - Floorplan E

SLRV Adventurer Interior 3D tour - Floorplan F

Power & Self Sufficiency

An Expedition Vehicle by definition, should not only reach remote locations it must allow its occupants to stay for extended periods. To do this, the vehicle must incorporate a power system that verges on self-sufficiency.  Let’s have a look at how SLRV combines cutting-edge design and the latest technology to do just that……

The Worlds Leading Battery Systems

The Worlds Leading Battery Systems

SLRV are proud partners with Mastervolt – the world leaders in Lithium battery systems. The MLI Ultra series is designed to enjoy all the best properties of Lithium Ion technology in the harshest conditions. These high-performance batteries are ideal for running heavy loads for long periods and short charge times. The battery communicates with the charging system, ensuring safety and performance is maximised at all times. With up to 70% saving in space and weight, these are the ideal choice for any expedition vehicle.

SOLAR POWER

SOLAR POWER

Multiple charging sources are crucial for any expedition vehicles power system. Solar cells play an essential role in keeping your system charged when no other source is available.  A good array of panels will, in fact, keep the necessary appliances in the Adventurer running self sufficiently – given a decent ray of sunshine.

GENERATORS

With a high-end Mastervolt Lithium battery system and a good set of solar panels, a generator is not regularly required. It does, however, provide a valuable backup source for charging the batteries during an extended period of overcast or rainy weather. It even comes in handy for running certain appliances – including your air conditioner. Generators can range anywhere from a small Honda 2.0i to a large built-in Diesel unit.

DC DC CHARGING

DC DC CHARGING

Charging your house batteries from your truck is done via the alternator and a DC DC charger. The amount of charging time available depends a lot on your style of touring. Some move camp every day, while others spend weeks at any particular location. Therefore it is vital to make the most of the available charge time while on the move. The SLRV electrical team have developed a system that can give up to a 100 amp charge. This can charge a Mastervolt lithium battery system from flat to full in as little as 4 hours.

Diesel Appliances

Diesel Appliances

Another way of utilising available power sources is to incorporate diesel appliances. Units such as cooktops, water heaters, room heaters and even diesel-powered ovens can provide a very efficient source of heat for cooking and comfort.

WANDERLUST (n) A strong desire or urge to travel the world and explore

WATER SYSTEMS

Water is undoubtedly our most precious commodity when remote touring. An Expedition Vehicle must not only hold ample water for its passengers, it has to aid in the conservation of water. This, in turn, allows you to remain out in the wilderness for longer. The SLRV team have designed a system that will do just that. Let’s have a look how it works!

MULTIPLE CELLS

MULTIPLE CELLS

To store and conserve water, the SLRV system incorporates multiple tanks – arranged in series of separate ‘cells’. By doing this, various quality water can be stored in separate tanks and accessed for specific uses – ultimately enabling you to conserve your water. This intelligent system allows you to select which tank you wish to fill by the press of a switch. Similarly, inside the vehicle, you can select which tank you want to draw from. The Adventurer holds just under 300L in total, giving you a good supply of water for remote adventures.

DEDICATED DRINKING WATER

DEDICATED DRINKING WATER

Ensuring you always have a safe source of drinking water is vital. SLRV have a dedicated and totally independent drinking water system –  with its own filler, tank, pump, filtration system and mixer outlet. This ensures your quality drinking water remains just that – and is ultimately conserved for extended isolated travel.

CITY WATER SUPPLY

CITY WATER SUPPLY

All SLRV water systems incorporate a city water entry – bypassing your tanks and allowing you to connect to the mains water supply whenever available. Pressure fillers used in the SLRV system also provide added security to your water supply.

Filtration and Reverse Osmosis

Filtration and Reverse Osmosis

Additional water filtration, purification and reverse osmosis systems can be custom fitted to your SLRV water system. Reverse Osmosis is the ultimate filtration method, separating water molecules to produce pure water and wastewater, which contains all the eliminated contaminants.

CREEK PUMP

CREEK PUMP

Staying out in the wilderness for longer is the name of the game. With water tanks set up in separate cells, it is possible to isolate and store water from various sources such as creeks, dams or rivers. This can be pumped into a dedicated tank using the ‘Thirsty Boy’ – and used for tasks including showering or doing a washing cycle. The Thirsty Boy can also be used on the ‘city water entry’ circuit – bypassing tanks altogether. The Thirsty Boy comes in its own ‘tough case’ with an internal pump and power supply for complete mobility. Just hook up your water hoses and away you go.

Construction

The SLRV Adventurer is constructed using premium materials and components. The entire vehicle has been specifically designed to withstand harsh off-road conditions – and does so with ease. Have a look at whats involved…….

CAD Design & CNC

CAD Design & CNC

SLRV use the latest SOLIDWORKS 3D CAD software to continually develop and evaluate vehicle design. This manufacturing specific software also allows the SLRV design team to develop customised solutions for specific customer requirements. A wide variety of steel and aluminium components are then CNC cut and folded for continual accuracy and quality.

Suspension Mounted Body & Chassis

Suspension Mounted Body & Chassis

The torsional ‘twist’ of the Isuzu truck chassis in extreme conditions, requires the body to be mounted using a special spring suspension mounting system. This allows the body and truck chassis to twist independently – minimising transfer of these forces into the motorhome body. This also increases off-road performance by allowing the wheels to remain in contact with the ground.

Monocoque Chassis & Frame Design

Monocoque Chassis & Frame Design

The monocoque chassis and frame design of the Adventurer is one of the strongest construction methods available. With the chassis, walls and roof all welded into one unit, maximum resistance to external forces is achieved.

Infused composite Fibreglass Panels

Infused composite Fibreglass Panels

Externally, the SLRV Adventurer frame is laminated with fully infused 6mm fibreglass composite panels – further strengthening the unit and giving it maximum resistance to the external elements. Infused panels are manufactured under vacuum and injected with resin to maximise strength to weight ratios. These panels are fully self-supporting and along with an additional 25mm of foam, provide excellent insulation for the living quarters.

Superior Electrical Protection

Superior Electrical Protection

All wiring throughout the SLRV Adventurer is run in conduit for protection against wear and shorting. In fact, every electrical device has its own wiring, in conduit, the entire way back to the main circuit breaker.

Joinery

Joinery

SLRV joinery is constructed using the highest quality materials, fixtures and fittings – and is specifically constructed for rugged off-road travel. Cabinet carcass’ are constructed from an ultralight, waterproof and fire retardant plastic material, giving high strength and durability. Cupboard and drawer fronts are finished in a high-quality ABS plastic and are complemented by soft close drawer runners and Blum overhead stays. SLRV heavy duty compression latches are used throughout.

SLRV hatch's

SLRV hatch's

SLRV manufacture its own range of aluminium hatches. Unlike mass-produced hatch’s, they are dust and waterproof do not degrade in the sun. Composite door panels open with gas strut assist and LED lights automatically turn on inside the hatch area.

The Modified Truck

The Modified Truck

The SLRV Adventurer is based on the Isuzu NPS 75 155 4×4 cab chassis (formerly NPS 300 4×4). Isuzu trucks have a proven track record when it comes to reliability – and are regularly used in rural fire brigades and electrical services for this reason. With a few basic modifications, this truck becomes one seriously capable 4×4 vehicle. Check out the specs and mods.

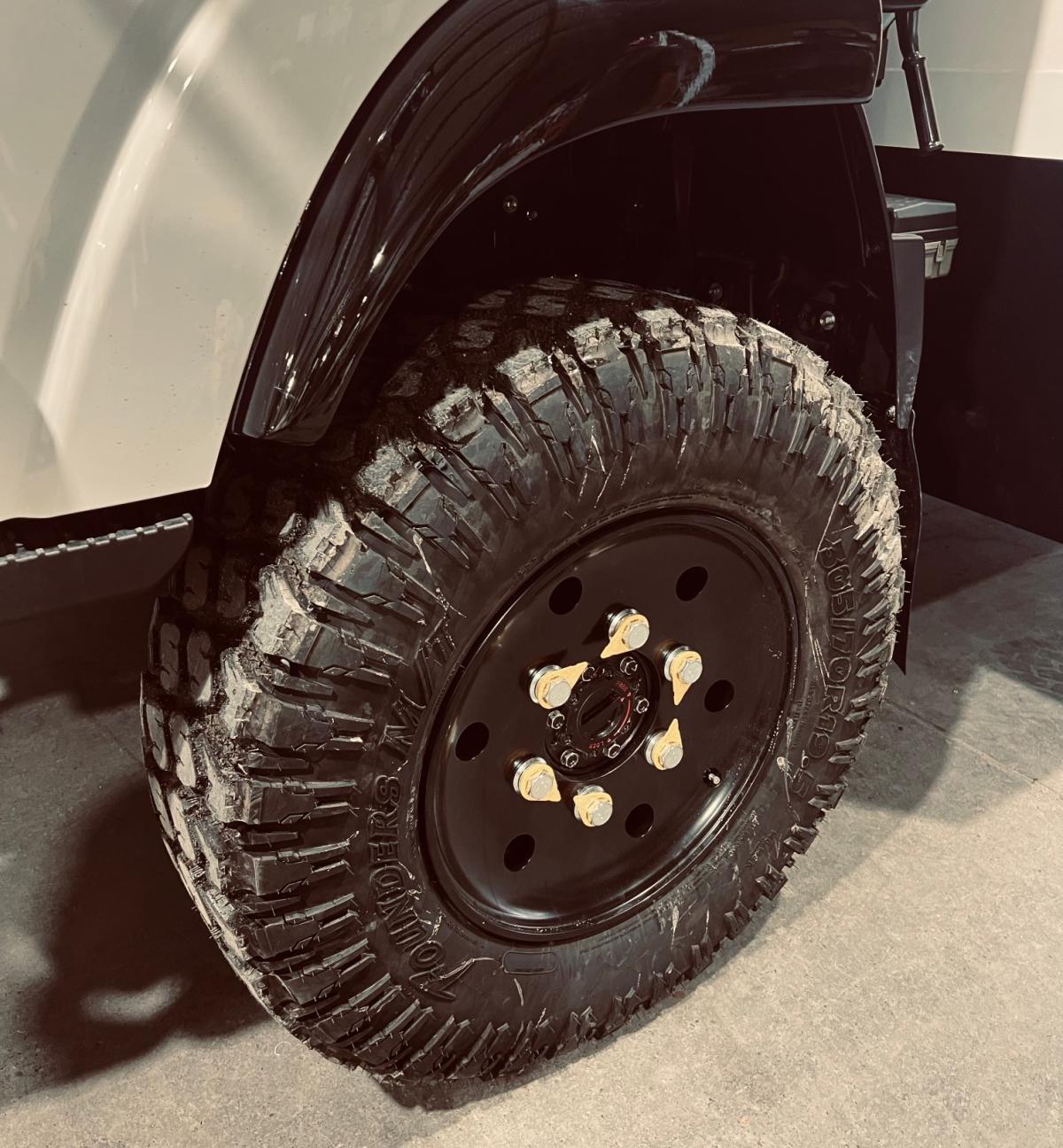

Super Single Wheels and Tyres

Super Single Wheels and Tyres

Super single wheel and tyre combinations offer a greater footprint for improved off-road capability. The front and rear have the same track, allowing the rear to follow the compacted track of the front wheels. The larger diameter offers greater ground clearance for the vehicle and wheels can be rotated to extend the life of the tyre.

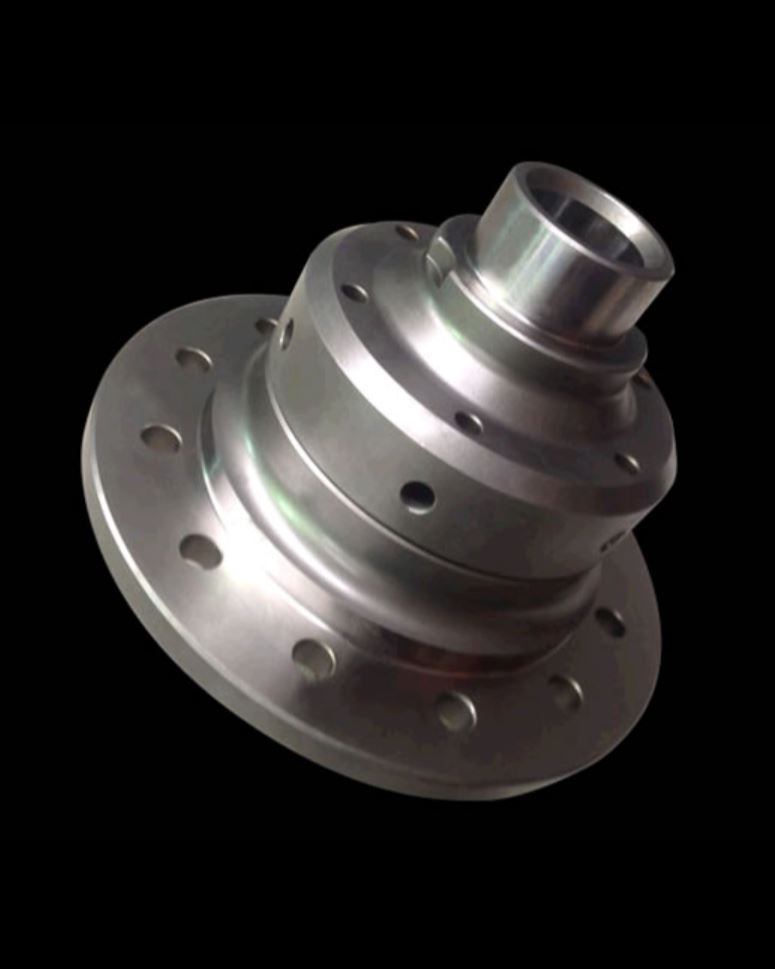

Diff Lock

Diff Lock

In 2018 SLRV will have the worlds first full diff lock for the Isuzu NPS300 / 75-155 4×4 truck. The locker is available for the rear diff, while a front ‘no spin’ diff is also available for the front.

Suspension Upgrade

Suspension Upgrade

SLRV’s suspension upgrade provides a number of benefits specific to this kind of vehicle. Upgrades include:

  • Koni Shock Absorbers
  • Greasable shackle pins and bush’s added
  • Extended brake lines
  • Upgraded front cross member and sway bar mounts for increased articulation
  • Longer front springs for ride comfort and additional travel
  • Rear springs modified to single stage for ride comfort and additional travel
  • Approx 100mm overall lift with Super single wheels and tyres

SLRV Adventurer suspension in action

Note how stable the truck cab is compared to the suspension.

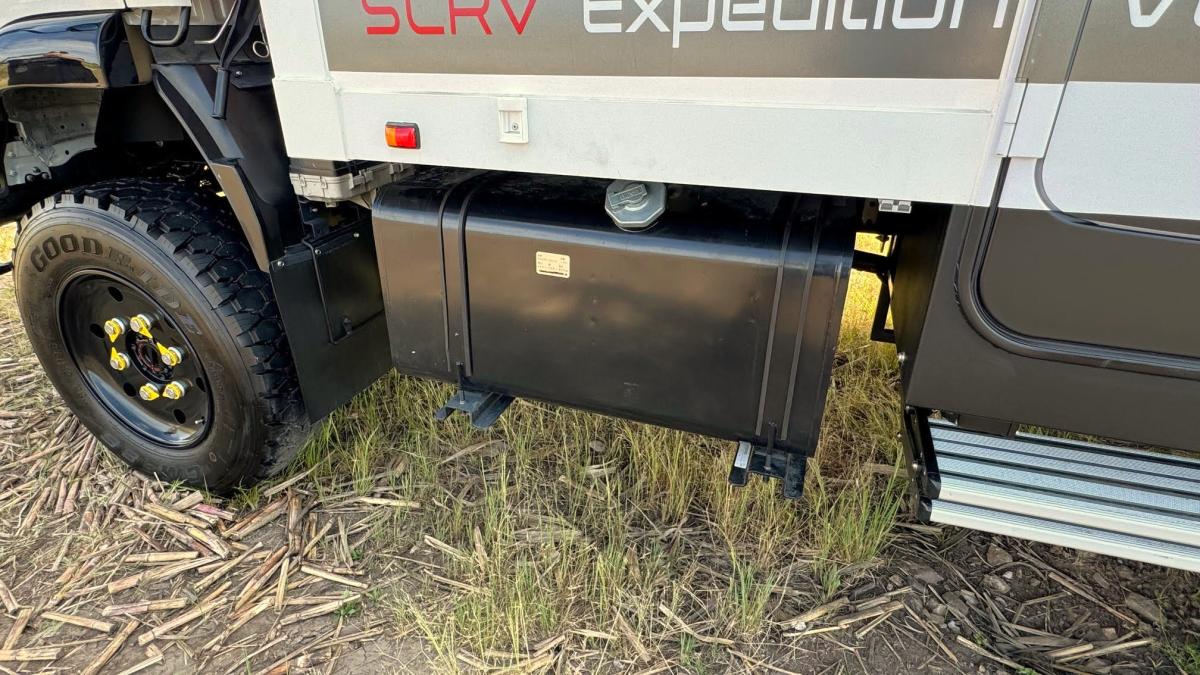

Long Range Fuel Tank

Long Range Fuel Tank

The standard steel 140L factory diesel tank is replaced with a 285L aluminium model, extending the range of the Adventurer dramatically.

Expedition Roof Rack & Windscreen Bars

Expedition Roof Rack & Windscreen Bars

A standard feature on the SLRV Adventurer is the Bozcrome NPS 75 155 Expedition Roof Rack. It features a massive area for storage, tie down bars, windscreen scrub bars, spotlight mounts and an access ladder.

Winch Bar, Bash Guard & Front Winch

Winch Bar, Bash Guard & Front Winch

Optional accessories for the front of the Isuzu NPS 155 75  include a Bozcrome winch bar, bash guard and a Warn 15,000lb electric winch.

Rear Winch & Towbar

Rear Winch & Towbar

The rear winch assembly is available in 2 configurations:

  • Winch Only
  • Winch with Towbar receiver.

Designed to house the Warn 15,000 electric winch, this option can get you back out of a tricky situation where there is no option of going forward.

Compressed Air System

Compressed Air System

The SLRV Adventurer can be fitted with an optional Compressed Air System – very hand for tyre inflation and air tool operation. The compressor unit runs off the vehicle’s engine and is fitted with a holding tank, regulator and air hose outlets.

Isuzu NPS 75 155 Specifications

SLRV Adventurer Floorplan - A

SLRV Adventurer Floorplan - A
  • Front Fixed EW bed
  • Dinette
  • Combined Shower Toilet
  • Large kitchen
Download SLRV Adventurer Floorplan - A

SLRV Adventurer Floorplan - B

SLRV Adventurer Floorplan - B
  • Front Electric lift up bed
  • Club lounge under
  • Combined Shower Toilet
  • Large kitchen
  • Optional 2 x rear seatbelts
Download SLRV Adventurer Floorplan - B

SLRV Adventurer Floorplan - C

SLRV Adventurer Floorplan - C
  • Front Electric lift up bed
  • Club lounge under
  • Separate Ensuite
  • Galley kitchen
  • Optional 2 x rear seatbelts
Download SLRV Adventurer Floorplan - C

SLRV Adventurer Floorplan - D

SLRV Adventurer Floorplan - D
  • Front Electric lift up bed
  • Club lounge under
  • Separate Ensuite
  • Galley kitchen
  • Optional 2 x rear seatbelts
Download SLRV Adventurer Floorplan - D

SLRV Adventurer Floorplan - E

SLRV Adventurer Floorplan - E
  • Rear Electric lift up bed
  • Club lounge under
  • Combined Shower Toilet
  • Galley kitchen
  • Optional 2 x rear seatbelts
Download SLRV Adventurer Floorplan - E

SLRV Adventurer Floorplan - F

SLRV Adventurer Floorplan - F
  • Rear 2 x single beds
  • Beds convert for dining with table
  • Combined Shower Toilet
  • Galley kitchen
Download SLRV Adventurer Floorplan - F

SLRV Adventurer Floorplan - G

SLRV Adventurer Floorplan - G
  • Family Bunk Layout
  • Front Electric lift up bed
  • Club lounge under
  • Combined Shower Toilet
  • Galley kitchen
  • Optional 2 x rear seatbelts
Download SLRV Adventurer Floorplan - G

Custom Floorplan

Custom Floorplan
  • Custom Floorplans Available
  • Contact SLRV design team for details
