Commander 4×4

SLRV Commander 4x4 Expedition Vehicle

With its world renowned MAN four wheel drive off road ability and a comprehensive list of features, this is the ultimate 4x4 Expedition Vehicle.

The SLRV Commander 4×4 Expedition Vehicle is a true home away from home. Its spacious interior and a long list of features make this one of the most luxurious and well appointed off-road motorhomes available. Perfect for those who require a larger living space.

Completely self-contained, the SLRV Commander has an impressive list of included and optional features that give it its long range and long-term travel capability. The Commander is available in a choice of floor plans, and SLRV can custom fit to suit specific customer requirements.

Easily shipped to anywhere around the globe, this is the ultimate long-term four-wheel drive camper – and the ultimate way to see the world.

Interior Comfort

The SLRV Commander has an extremely spacious, luxuriously appointed interior – perfect for those requiring the additional comforts of home. Cushioned headlining, leather lounge options, modern cabinetry and solid surface benchtop combinations furnish the multiple living areas of this vehicle – creating an incredible living space. Interiors are available in various configurations.

Features & Appliances

Features & Appliances

SLRV vehicles can be fitted with an almost endless range of features and appliances, including diesel and gas cooktops, water and room heaters, washing machines, entertainment systems and more. The new under bench ‘side by side’ marine compressor fridge creates a considerable amount of additional bench space and adds to the open feel.

Electric Lift up Bed Configuration

Electric Lift up Bed Configuration

The electric lift up bed configuration optimises available internal space by incorporating both the bed and large club lounge into one area. Conveniently located out of the way towards the roof, the bed can be lowered to a sleeping position at the press of a button. An electric bed also allows for bunks to be fitted for a family layout.

Fixed Bed Configuration

Fixed Bed Configuration

If you prefer a separate fixed bed configuration, the Commander’s floorplans include island queen, east west, or single bed designs.

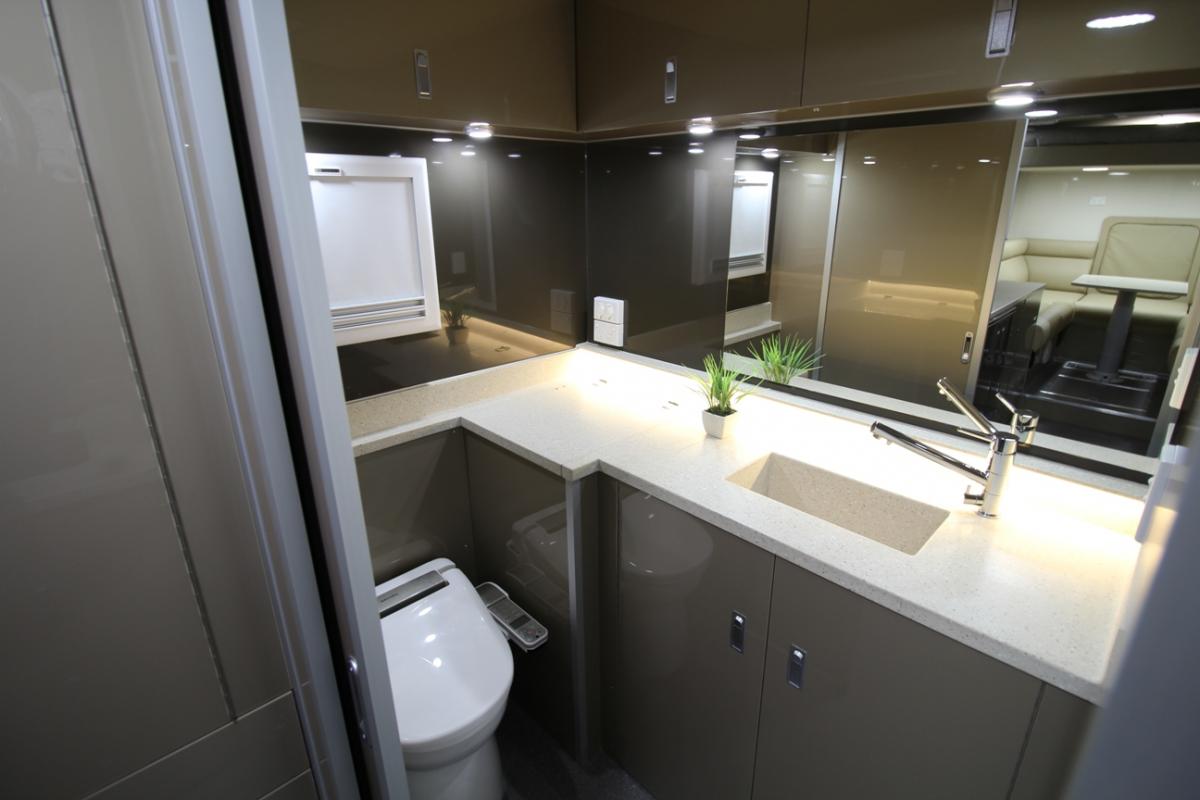

Full Ensuite

Full Ensuite

The Commander features a luxurious ‘full ensuite’ with separate shower, toilet and vanity unit. The wash basin is incorporated into the solid surface benchtop for a seamless finish.

Balcony Seating

Balcony Seating

Dinette configurations can be optioned with a large balcony styled opening – bringing the outside in. The balcony door also has an inbuilt window for use when closed.

Custom Interior Finishes

Custom Interior Finishes

No matter what your interior style is, SLRV have you covered. With a range of interior finishes including:

  • Flooring
  • Cabinetry
  • Splashback
  • Solid Surface Benchtop
  • Upholstery

You’re sure to find a style that makes you feel right at home.

SLRV Commander 3D Interior Tour - Floorplan B (2)

SLRV Commander 3D Interior Tour - Floorplan B

SLRV Commander 3D Interior / Exterior Tour - Custom Floorplan 1 - Quadbike Garage

SLRV Commander 3D Interior Tour- Custom Floorplan 2

SLRV Commander 3D Interior Tour- Custom Floorplan 3

SLRV Commander 3D Interior Tour- Custom Floorplan 4 - 8m

Power & Self Sufficiency

Power & Self Sufficiency

An Expedition Vehicle by definition, should not only reach remote locations it must allow its occupants to stay for extended periods. To do this, the vehicle must incorporate a power system that verges on self-sufficiency.  Let’s have a look at how the SLRV Commander combines cutting-edge design and the latest technology to do just that……

The Worlds Leading Battery Systems

The Worlds Leading Battery Systems

SLRV are proud partners with Mastervolt – the world leaders in Lithium battery systems. The MLI Ultra series is designed to enjoy all the best properties of Lithium Ion technology in the harshest conditions. These high-performance batteries are ideal for running heavy loads for long periods and short charge times. The battery communicates with the charging system, ensuring safety and performance is maximised at all times. With up to 70% saving in space and weight, these are the ideal choice for any expedition vehicle.

Solar Power

Solar Power

Multiple charging sources are crucial for any expedition vehicles power system. Solar cells play an essential role in keeping your system charged when no other source is available.  A good array of panels will, in fact, keep the necessary appliances in the Commander running self sufficiently – given a decent ray of sunshine.

Generators

With a high-end Mastervolt Lithium battery system and a good set of solar panels, a generator is not regularly required. It does, however, provide a valuable backup source for charging the batteries during an extended period of overcast or rainy weather. It even comes in handy for running certain appliances – including your air conditioner. Generators can range anywhere from a small Honda 2.0i to a large built-in Diesel unit.

DC DC Chargers

DC DC Chargers

Charging your house batteries from your truck is done via the alternator and a DC-DC charger. The amount of charging time available depends a lot on your style of touring. Some move camp every day, while others spend weeks at any particular location. Therefore it is vital to make the most of the available charge time while on the move. The SLRV electrical team have developed a system that can give up to a 100 amp charge. This can charge a Mastervolt lithium battery system from flat to full in as little as 4 hours.

Diesel Appliances

Diesel Appliances

Another way of utilising available power sources is to incorporate diesel appliances. Units such as cooktops, water heaters, room heaters and even diesel-powered ovens can provide a very efficient source of heat for cooking and comfort.

I haven't been everywhere, but its on my list.

Water Systems

Water is undoubtedly our most precious commodity when remote touring. An Expedition Vehicle must not only hold ample water for its passengers; it has to aid in the conservation of water. This, in turn, allows you to remain out in the wilderness for longer. The SLRV team have designed a system that will do just that. Let’s have a look how it works.

Multiple Cells

Multiple Cells

To store and conserve water, the SLRV system incorporates multiple tanks – arranged in series of separate ‘cells’. By doing this, various quality water can be stored in separate tanks and accessed for specific uses – ultimately enabling you to conserve your water. This intelligent system allows you to select which tank you wish to fill by the press of a switch. Similarly, inside the vehicle, you can choose which tank you want to draw from. Depending on configuration, the Commander holds between 500 and 1000 litres of water – suitable for long-term remote travel.

Dedicated Drinking Water

Dedicated Drinking Water

Ensuring you always have a safe source of drinking water is vital. SLRV have a dedicated and independent drinking water system –  with its own filler, tank, pump, filtration system and mixer outlet. This ensures your quality drinking water remains just that – and is ultimately conserved for extended isolated travel.

City Water Supply

City Water Supply

All SLRV water systems incorporate a city water entry – bypassing your tanks and allowing you to connect to the mains water supply whenever available. Pressure fillers used in the SLRV system also provide added security to your water supply.

Filtration and Reverse Osmosis

Filtration and Reverse Osmosis

Additional water filtration, purification and reverse osmosis systems can be custom fitted to your SLRV water system. Reverse Osmosis is the ultimate filtration method, separating water molecules to produce pure water and waste water, which contains all the eliminated contaminants.

Creek Pump

Creek Pump

Staying out in the wilderness for longer is the name of the game. With water tanks set up in separate cells, it is possible to isolate and store water from various sources such as creeks, dams or rivers. This can be pumped into a dedicated tank using the ‘Thirsty Boy’ – and used for tasks including showering or doing a washing cycle. The Thirsty Boy can also be used on the ‘city water entry’ circuit – bypassing tanks altogether. The Thirsty Boy comes in its own ‘tough case’ with an internal pump and power supply for complete mobility. Just hook up your water hoses, and away you go.

Construction

Construction

The SLRV Commander is constructed using the latest in composite technology and sits on a specially engineered 3 point torsion free chassis. The result is something to behold.

Take a look!

CAD Design & CNC

CAD Design & CNC

SLRV use the latest SOLIDWORKS 3D CAD software to develop and evaluate vehicle design continually. This manufacturing specific software also allows the SLRV design team to create customised solutions for specific customer requirements. A wide variety of steel and aluminium components are then CNC cut and folded for continual accuracy and quality.

3 Point Torsion Free Chassis

3 Point Torsion Free Chassis

The torsional ‘twist’ of the MAN truck chassis in extreme conditions, requires the body to be mounted using a 3 point torsion free chassis mounting system. This allows the body and truck chassis to twist independently – minimising transfer of these forces into the motorhome body. This also increases off-road performance by allowing the wheels to remain in contact with the ground.

Infused Composite Fibreglass Panels

Infused Composite Fibreglass Panels

60mm composite fibreglass panels are used in the construction of the Commander’s body – for ultimate strength and cold bridge free insulation. Unlike inferior hot glued panels, SLRV panels are fully infused, which means they are manufactured under vacuum – injecting the perfect amount of resin into the fibreglass. The premium closed cell, self-extinguishing core material has a series of holes, allowing the resin to flow thru and connect the inside and outside fibreglass layers. This prevents de-lamination and adds to the overall strength of the panel.

Double Glazed recessed Glass Windows

Double Glazed recessed Glass Windows

The SLRV Commander features custom double glazed, gas-filled recessed windows. The recessed design creates a flush external fit, while double glazing provides excellent insulation against the elements. Insect and block out screens are fitted internally and all windows are available with external armour plating.

Superior Electrical Protection

Superior Electrical Protection

All wiring throughout the SLRV Commander is run in conduit for protection against wear and shorting. In fact, every electrical device has its own wiring, in conduit, the entire way back to the main circuit breaker.

Joinery

Joinery

SLRV joinery is constructed using the highest quality materials, fixtures and fittings – and is specially built for rugged off-road travel. Cabinet carcass’ is constructed from an ultralight, waterproof and fire retardant plastic material, giving high strength and durability. Cupboard and drawer fronts are finished in a high-quality ABS plastic and are complemented by soft close drawer runners and Blum overhead stays. SLRV heavy duty compression latches are used throughout.

SLRV hatch's

SLRV hatch's

SLRV manufacture its own range of aluminium hatches. Unlike mass-produced hatch’s, they are dust, and waterproof do not degrade in the sun. 60mm composite door panels open with gas strut assist and LED lights automatically turn on inside the hatch area.

SLRV Driver Training

The MAN TGM 13.290

The SLRV Commander is based on the MAN TGM 13.290 – one of the worlds most capable 4×4 trucks. With past performances and a recent win in the Dakar, MAN has a proven record of performance and reliability. The incredible ride and interior comfort make this is an exceptional touring vehicle.

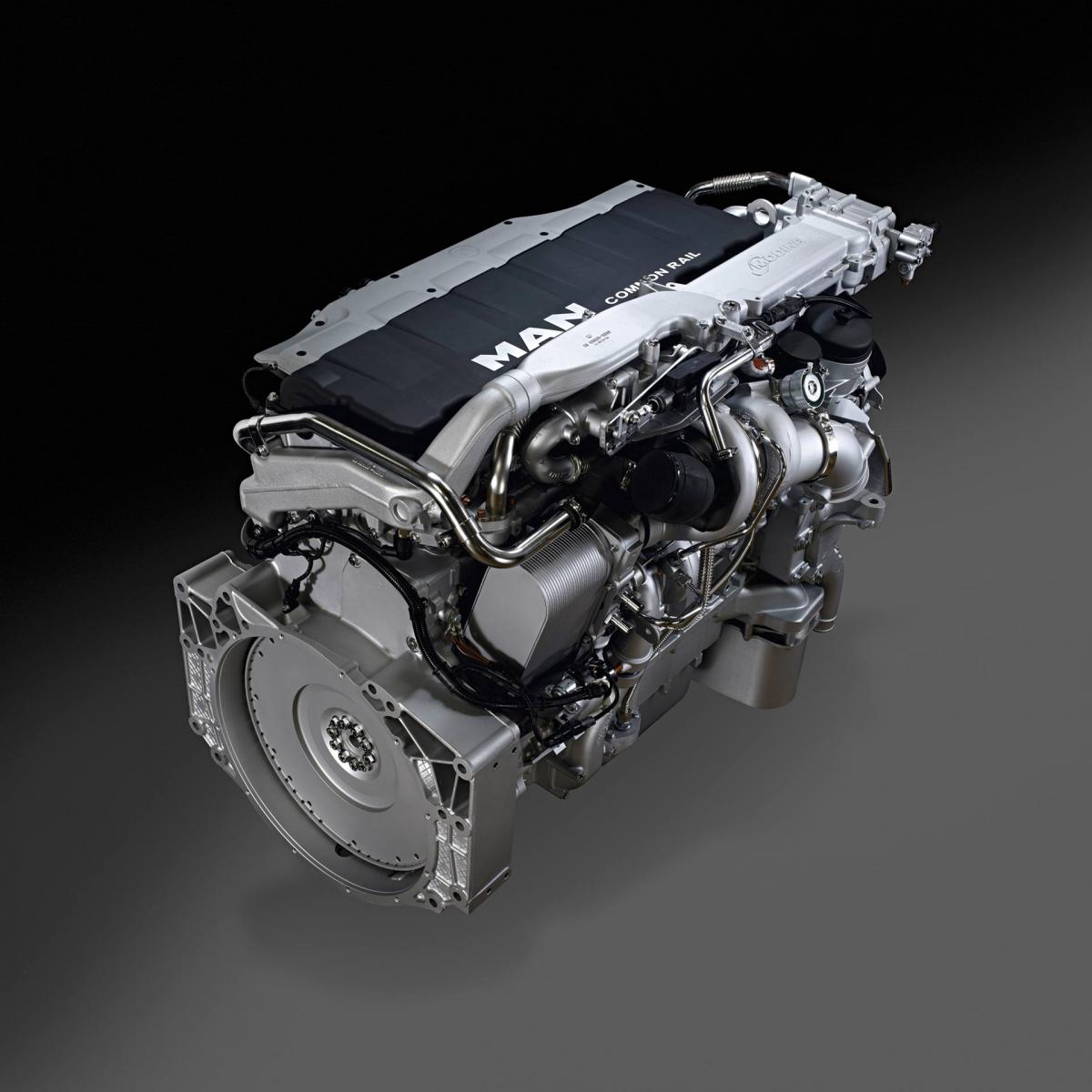

Engine

Engine

The MAN TGM 13.290 features a twin turbo, 6 cylinder 6871cc common rail engine with 24 valve cylinder head. It puts out 290Hp / 213kW at 2300rpm, with 1150Nm of torque. A powerful, yet economical engine well suited for highway and off-road travel. This vehicle does not require Ad Blue.

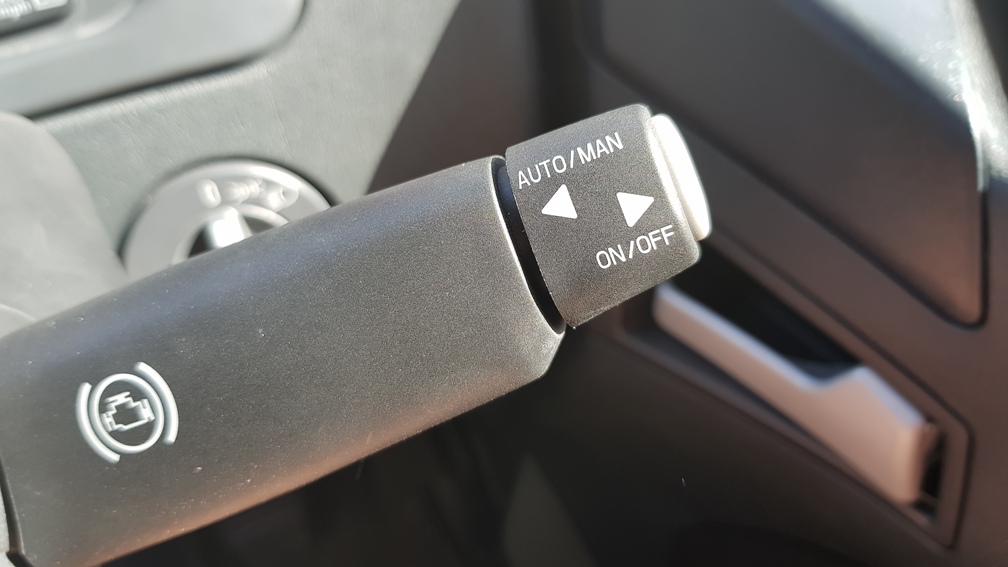

Automated - Manual Gearbox

Automated - Manual Gearbox

The TGM 13.290 features an automated 12-speed constant-mesh gearbox with manual over-ride using fingertip gearchange control. Put simply; you can drive it in automatic or manual mode. This is vital for selection of appropriate gears and engine revs when traversing off-road terrain.

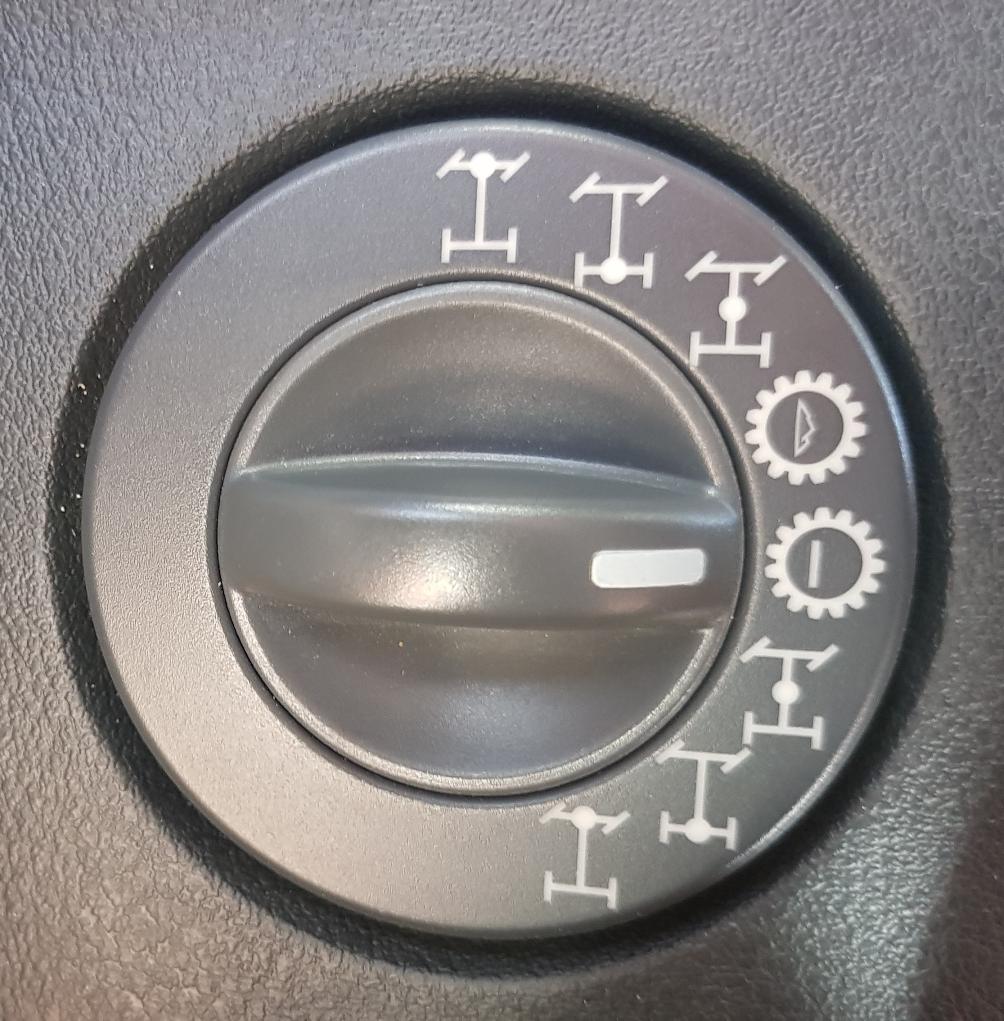

Diff Locks

Diff Locks

Front, Rear and Centre lockers are standard on this unit, giving it incredible off-road ability. Diff locks forces both wheels on the diff to turn in unison, regardless of the traction (or lack thereof) available to either wheel individually.

Military Spec Wheels & Tyres

Military Spec Wheels & Tyres

For ultimate off-road capability, the SLRV spec 13.290 is fitted with 20-inch wheels and Military spec Michelin XZL tyres. They provide maximum grip in mud and sand – and are very quiet for ‘on road’ driving.

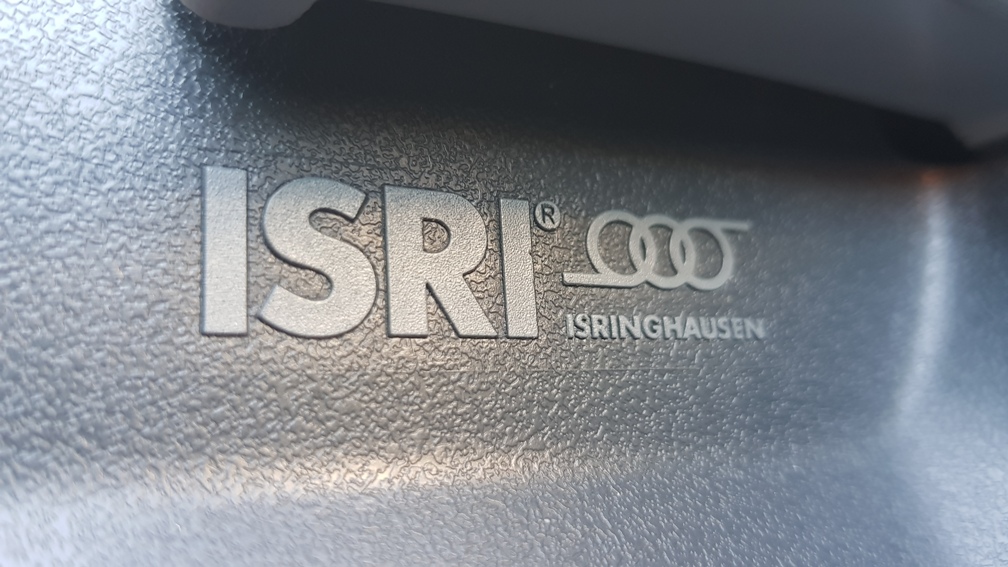

Isri Air Seats

Isri Air Seats

Seating by Isri is all air controlled and multi-adjustable. The air suspension seats provide maximum comfort over rough and relentless terrain.

Additional Fuel Tank

Additional Fuel Tank

SLRV spec vehicles are optioned with an additional diesel fuel tank, giving the vehicle around 600L for extended range.

Expedition Roof Rack and Windscreen Bars

Expedition Roof Rack and Windscreen Bars

SLRV’s custom aluminium expedition roof rack provides additional storage area over the cab of the truck. It also features a side access ladder, spotlight mounts and sidebars to protect the windscreen from tree branches.

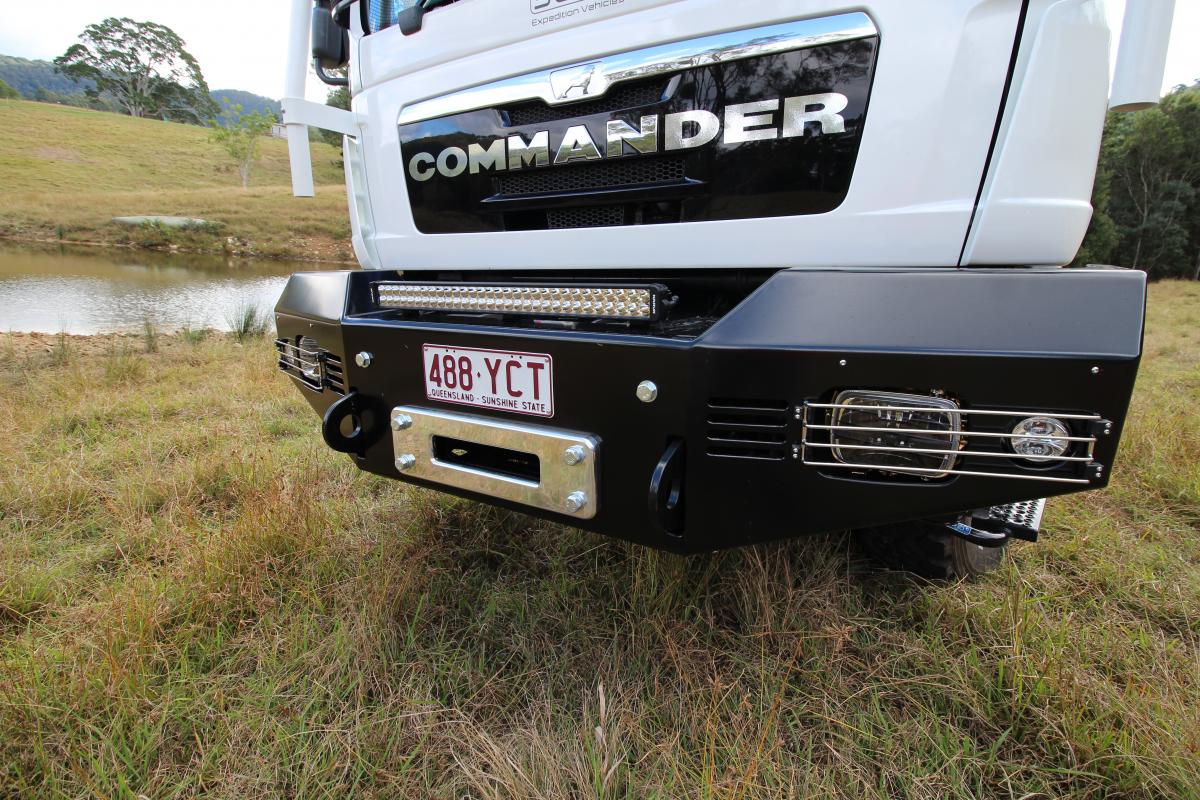

Winch Bar, Bash Guard & Front Winch

Winch Bar, Bash Guard & Front Winch

SLRV fit the new ‘Bozcrome’ aluminium winch bar – featuring LED headlights, fog lights, optional LED spotlight bar, recovery points, fair-lead and a bash guard for underbody protection. It houses a high-quality 20,000lb hydraulic winch with approx 75m of synthetic cable.

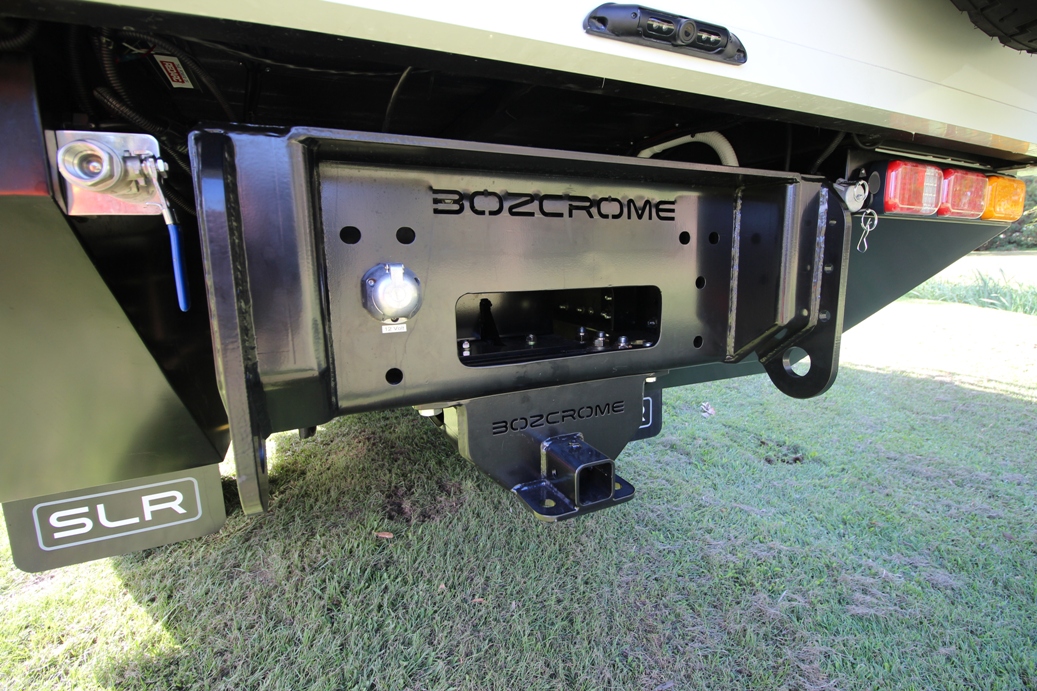

Rear Winch & Towbar

Rear Winch & Towbar

The Bozcrome rear winch receiver is designed to house the same 20,000lb hydraulic winch used up front. Very handy for a rear recovery – when there just isn’t any chance of going forward. The receivers smart design allows a number of towbar attachments, including a standard 50mm towbar attachment and pintle hook.

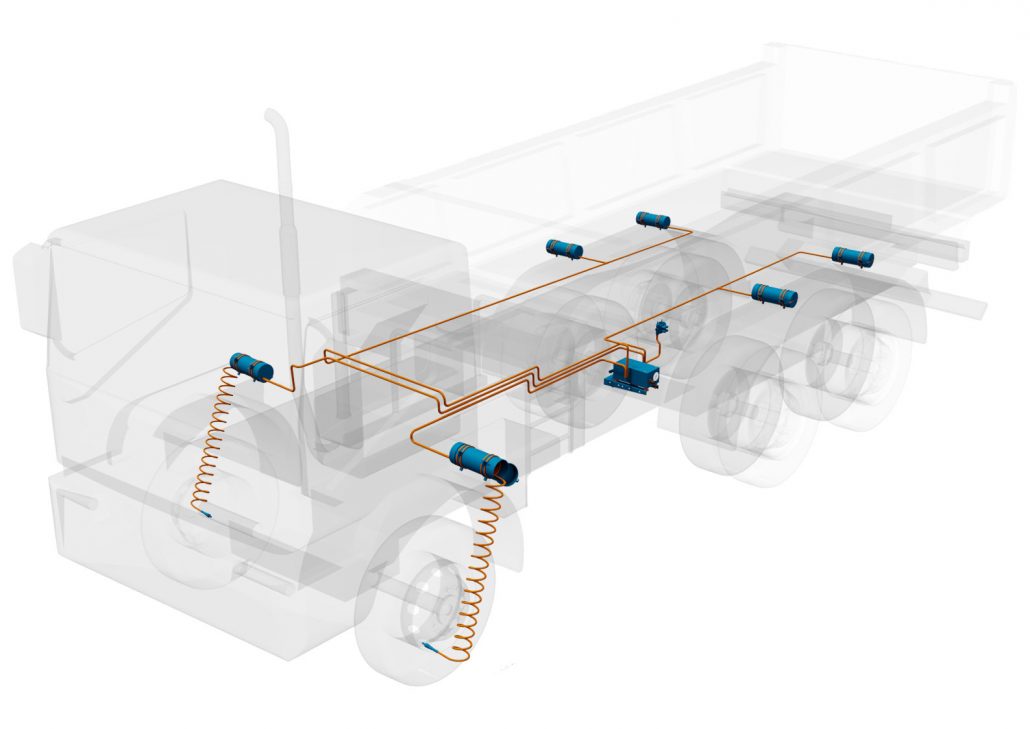

Compressed Air System

Compressed Air System

The MAN TGM 13.290 already features an onboard air system. It feeds the rear airbag suspension – which is optioned on a majority of SLRV Commanders. It provides an exceptionally comfortable ride and auto levelling ability. The air system is also utilised by the Isri air adjustable seats. Tyre inflation and deflation can be simultaneously controlled for all tyres by an optional semi-automatic control system.

Day, Sleeper & Crew Cab

Day, Sleeper & Crew Cab

The 13.290 is available in Day, Sleeper or Crew Cab configuration. Using these different models, SLRV can design the body to suit almost all applications – from the solo traveller – thru to the complete family of explorers.

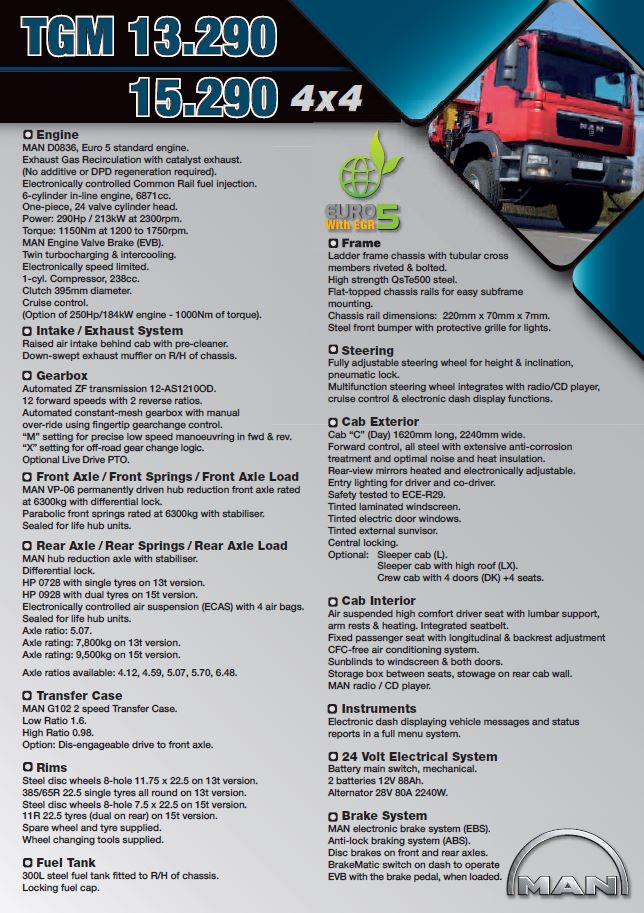

MAN 13.290 4x4 Specifications

SLRV Commander 4x4 Floorplan A

SLRV Commander 4x4 Floorplan A
  • Front Fixed EW bed
  • Dinette
  • Separate Ensuite
  • Galley Kitchen
Download SLRV Commander Floorplan - A

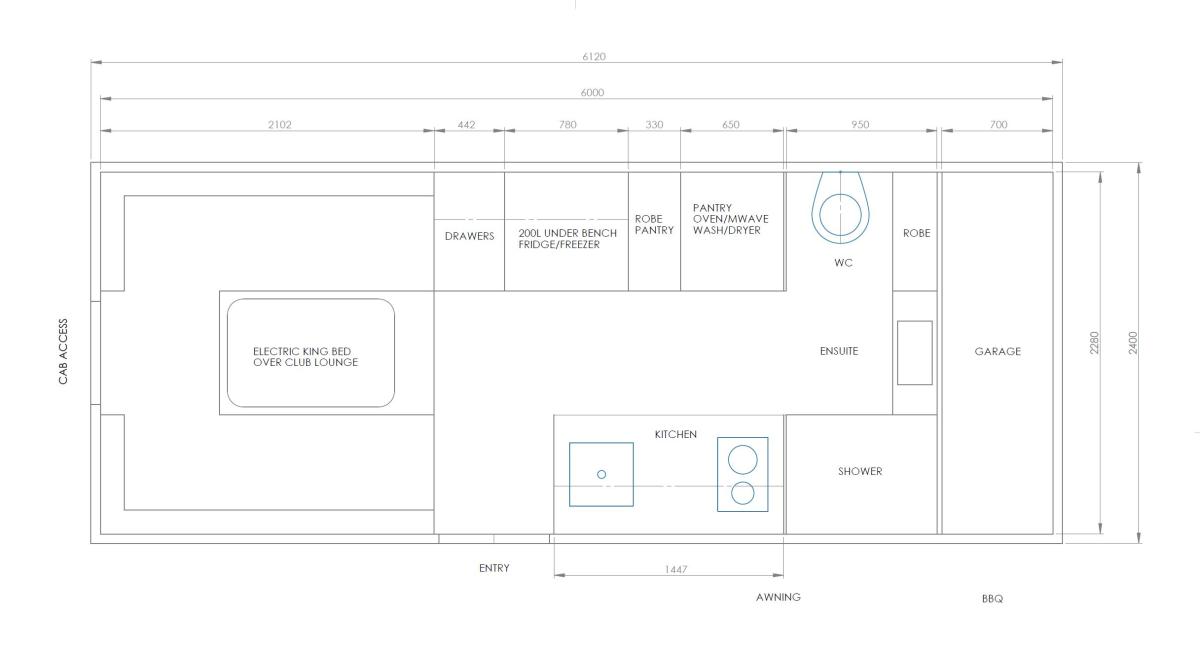

SLRV Commander 4x4 Floorplan B

SLRV Commander 4x4 Floorplan B
  • Front Electric lift up bed
  • Club lounge under
  • Separate Ensuite
  • Galley kitchen
  • Optional 2 x rear seatbelts
Download SLRV Commander Floorplan - B

SLRV Commander 4x4 Floorplan C

SLRV Commander 4x4 Floorplan C
  • Island NS bed
  • Dinette
  • Large Kitchen
  • Separate Ensuite
Download SLRV Commander Floorplan - C

SLRV Commander 4x4 Floorplan D

SLRV Commander 4x4 Floorplan D
  • Rear EW Queen Bed
  • Dinette
  • Galley Kitchen
  • Separate Ensuite
Download SLRV Commander Floorplan - D

SLRV Commander 4x4 Floorplan E

SLRV Commander 4x4 Floorplan E
  • Family Floorplan
  • Front Electric lift up bed
  • Club lounge under
  • Central Kitchen
  • Separate Ensuite
  • Bunks x 2 or 3
  • Up to 4 x rear seatbelts
Download SLRV Commander Floorplan - E

Custom Floorplan

Custom Floorplan
  • Custom Floorplans Available
  • Contact SLRV design team for details
